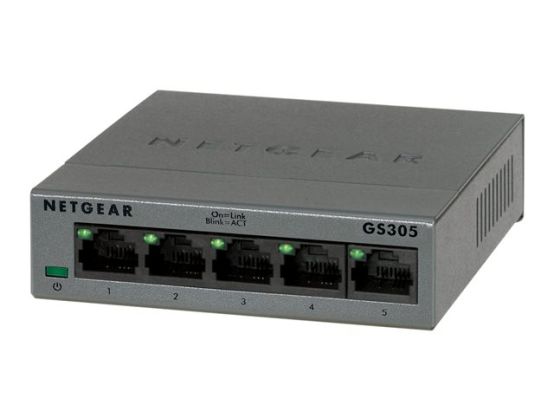

NETGEAR GS305 - v3 - switch - 5 ports - unmanaged
Manufacture#: GS305-300UKS
Checking delivery…
Product details
- V3
- switch
- unmanaged
- 5 x 10/100/1000
Payment options available at checkout
Main features
- NETGEAR GS305
- V3
- switch
- unmanaged
- 5 x 10/100/1000
- desktop, wall-mountable
Overview
These NETGEAR home Ethernet switches provide an easy, reliable, and affordable way to expand your network connections in homes and small offices.
- Auto-MDI/MDIX eliminates the need for crossover cables
- LED indicators for ease of use
- Energy-efficient technology for power savings
- Fan-less design for quiet operation
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Non-blocking switching architecture for maximum throughput at wire speed
- Plug-and-play
- High-performance metal case
- LED on each port
- Wall mountable
Product Description
NETGEAR GS305 - v3 - switch - 5 ports - unmanaged
Device Type
Switch - 5 ports - unmanaged
Subtype
Gigabit Ethernet
Ports
5 x 10/100/1000
Performance
Bandwidth: 10 Gbps ¦ Forwarding performance (64-byte packet size): 1448000 pps
Capacity
Packet buffer size: 128
MAC Address Table Size
2K entries
Jumbo Frame Support
9216 bytes
Features
Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), QoS, fanless, Energy Efficient Ethernet, SOHO, WRR
Compliant Standards
IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
Dimensions (WxDxH)
10.1 cm x 9.4 cm x 2.9 cm
Weight
250 g
Manufacturer Warranty
3-year warranty
General
Device Type
Switch - 5 ports - unmanaged
Enclosure Type
Desktop, wall-mountable
Subtype
Gigabit Ethernet
Ports
5 x 10/100/1000
Performance
Bandwidth: 10 Gbps ¦ Forwarding performance (64-byte packet size): 1448000 pps
Capacity
Packet buffer size: 128
MAC Address Table Size
2K entries
Jumbo Frame Support
9216 bytes
Features
Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), QoS, fanless, Energy Efficient Ethernet, SOHO, WRR
Compliant Standards
IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
Status Indicators
Power, link/activity
Expansion / Connectivity
Interfaces
5 x 1000Base-T RJ-45
Power
Power Device
External power adapter
Power Consumption Operational
2.15 Watt
Power Consumption Stand by
0.31 Watt
Miscellaneous
MTBF
3,831,422 hours
Compliant Standards
Plug and Play, IC Class B, VCCI, CB, FCC Part 15 B, LVD, RCM
Dimensions & Weight
Width
10.1 cm
Depth
9.4 cm
Height
2.9 cm
Weight
250 g
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
90% (non-condensing)
Min Storage Temperature
-20 °C
Max Storage Temperature
70 °C
Humidity Range Storage
95% (non-condensing)
