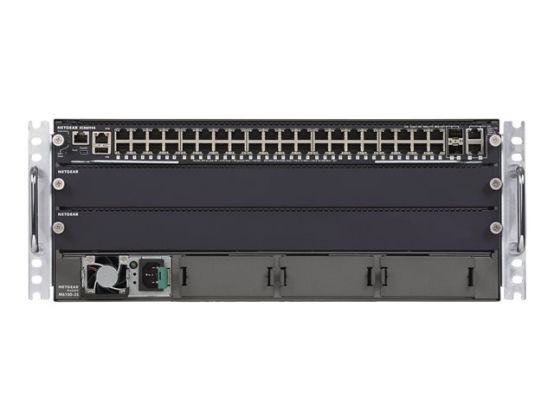

Name: NETGEAR M6100-44G3-POE+ Chassis Starter Kit Bundle (1x XCM8903S Base Chassis, 1x XCM8944 Blade, 1x XCM89P Daughter Card, 1xAPS1000W PSU, 1x AFT603 Fan Tray)
Brand: NETGEAR
SKU: 1TNETNHS-031864
Price: 3374.29 GBP
Availability: OutOfStock

Overview

Main features

NETGEAR M6100-44G3-POE+
Starter Kit
switch
L4
Managed
40 x 10/100/1000 + 2 x 10Gb Ethernet + 2 x 10 Gigabit SFP+
rack-mountable
PoE+

Overview

The ProSAFE M6100 Switch Series consists of Gigabit access layer and 10 Gigabit distribution layer switches in NETGEAR modular chassis switch product line. The M6100 switch series offers high-quality, high-density chassis alternative to stackable switches in campus LAN and midsize organizations demanding networks. With more than 1.4 Tbps switching and routing capacity, passive backplane, management and fabric nonstop forwarding redundancy, the M6100 series delivers world-class resiliency and scalability. Ultimately, operating software and system management features take the complexity out of delivering L2/L3/L4 rich services for enterprise edge and SMB core deployments.

Specification

Product Description NETGEAR M6100-44G3-POE+ - Starter Kit - switch - 44 ports - Managed - rack-mountable

Device Type Switch - 44 ports - L4 - Managed

Enclosure Type Rack-mountable 4U

Subtype Gigabit Ethernet

Ports 40 x 10/100/1000 + 2 x 10Gb Ethernet + 2 x 10 Gigabit SFP+

Power Over Ethernet (PoE) PoE+

Capacity Virtual interfaces (VLANs): 4000 ¦ Static routes: 512 ¦ RIP routes: 512 ¦ OSPF routes: 12000 ¦ BGP routes: 12000 ¦ ARP entries: 8000 ¦ IPv4 forwarding table entries: 1536 ¦ IPv6 forwarding table entries: 512

MAC Address Table Size 32000 entries

Jumbo Frame Support 12KB

Routing Protocol OSPF, BGP-4, RIP-1, RIP-2, BGP, IGMPv2, DVMRP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, OSPF for IPv6, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), MLDv2, PIM-SMv6, BGP for IPv6, PIM-DMv6

Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI

Features BOOTP support, ARP support, trunking, VLAN support, IGMP snooping, Syslog support, traffic shaping, DoS attack prevention, port mirroring, DiffServ support, WRR queuing, store and forward, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, WFQ, WRED, sFlow, STP support, RSTP support, PVST, MSTP support, DCBX support, priority-based flow control, DHCP snooping, TFTP support, ACL support, QoS, DHCP server, MLD snooping, DAI, STP Root Guard, UDLD, DWRR, LLDP support, DHCP relay, RSPAN, PVRST, DHCP client, Energy Efficient Ethernet, MIB, dual firmware images, MVRP, SPQ, CoS, tagged VLAN, GARP, IGMP proxy, ToS, DSCP support, MLD proxy, FIP

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1as, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz

Power AC 120/230 V (50/60 Hz)

Power Redundancy Optional

Dimensions (WxDxH) 43.2 cm x 44.16 cm x 17.59 cm

Manufacturer Warranty NETGEAR lifetime warranty

General

Device Type Switch - 44 ports - L4 - Managed

Enclosure Type Rack-mountable 4U

Subtype Gigabit Ethernet

Ports 40 x 10/100/1000 + 2 x 10Gb Ethernet + 2 x 10 Gigabit SFP+

Power Over Ethernet (PoE) PoE+

Capacity Virtual interfaces (VLANs): 4000 ¦ Static routes: 512 ¦ RIP routes: 512 ¦ OSPF routes: 12000 ¦ BGP routes: 12000 ¦ ARP entries: 8000 ¦ IPv4 forwarding table entries: 1536 ¦ IPv6 forwarding table entries: 512

MAC Address Table Size 32000 entries

Jumbo Frame Support 12KB

Routing Protocol OSPF, BGP-4, RIP-1, RIP-2, BGP, IGMPv2, DVMRP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, OSPF for IPv6, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), MLDv2, PIM-SMv6, BGP for IPv6, PIM-DMv6

Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI

Encryption Algorithm AES, TLS 1.0, SSL 3.0

Authentication Method Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)

Features BOOTP support, ARP support, trunking, VLAN support, IGMP snooping, Syslog support, traffic shaping, DoS attack prevention, port mirroring, DiffServ support, WRR queuing, store and forward, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, WFQ, WRED, sFlow, STP support, RSTP support, PVST, MSTP support, DCBX support, priority-based flow control, DHCP snooping, TFTP support, ACL support, QoS, DHCP server, MLD snooping, DAI, STP Root Guard, UDLD, DWRR, LLDP support, DHCP relay, RSPAN, PVRST, DHCP client, Energy Efficient Ethernet, MIB, dual firmware images, MVRP, SPQ, CoS, tagged VLAN, GARP, IGMP proxy, ToS, DSCP support, MLD proxy, FIP

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1as, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz

Processor 1: 800 MHz

RAM 1 GB

Flash Memory 64 MB

Status Indicators Port transmission speed, power, status, link/activity, supervisor

Expansion / Connectivity

Interfaces 40 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 2 x 10GBase-T RJ-45 ¦ 2 x 10GBase-X SFP+ ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x serial RJ-45 ¦ 1 x management (mini-USB) ¦ 1 x USB Type A

Expansion Slots 3 (total) / 2 (free) x Expansion Slot

Installed Modules Qty (Max) 1 (installed) / 3 (max)

Power

Power Device Internal power supply - hot-plug

Installed Qty 1

Max Supported Qty 4

Power Redundancy Optional

Power Redundancy Scheme N+1

Power Provided 1000 Watt

Voltage Required AC 120/230 V (50/60 Hz)

80 PLUS Certification 80 PLUS

Features Redundant Power System (RPS) connector

Miscellaneous

Included Accessories Fan tray

Rack Mounting Kit Included

Compliant Standards CISPR 22 Class A, cUL, EN 60950, IEC950, UL 1950, EN55024, CSA 22.2 No. 950, EN55022 Class A, EN50082-1, FCC Part 15 A, C-Tick Class A, VCCI Class A

Dimensions & Weight

Width 43.2 cm

Depth 44.16 cm

Height 17.59 cm

Manufacturer Warranty

Service & Support Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - phone consulting - 90 days ¦ Technical support - e-mail consulting - 90 days ¦ Technical support - web support - lifetime

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 50 °C

Humidity Range Operating 0 - 90% (non-condensing)

Min Storage Temperature -20 °C

Max Storage Temperature 70 °C

Humidity Range Storage 0 - 95% (non-condensing)
