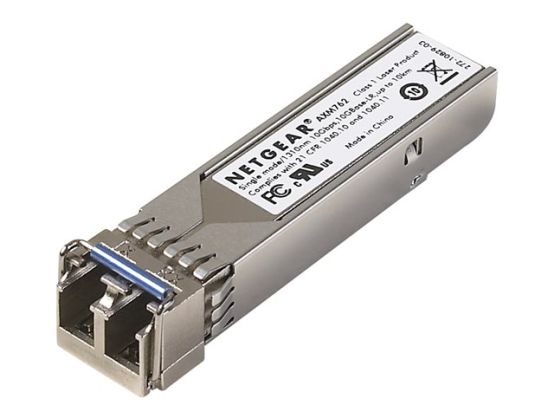

NETGEAR ProSafe AXM762 - SFP+ transceiver module - 10GbE
Manufacture#: AXM762P10-10000S
£3517 .57
£4221.08 inc VAT
Checking delivery…
Product details
SFP+ transceiver module
10GbE
10GBase-LR
LC single-mode
Payment options available at checkout
Main features
NETGEAR ProSafe AXM762
SFP+ transceiver module
10GbE
10GBase-LR
LC single-mode
up to 300 m
1310 nm (pack of 10)
Overview
This GBIC is built to insert into any one of the two built-in 10 GE SFP+ interfaces of GSM7328Sv2 and GSM7352Sv2, and into the 10GE SFP+ interface of AX743 adapter module for GSM73xxS/GSM73xxSv2. Once inserted (hot-swappable), the AXM761 10GBASE-LR SFP+ (LC connector) drives 10 Gigabit Ethernet up to 10 km distances with 9/125µm SMF single mode fiber cables, or up to 33 m distances with 62.5/125µm OM1 multimode fiber cables.¦This is a pack of 10 AXM762 SFP+ modules.
Product Description
NETGEAR ProSafe AXM762 - SFP+ transceiver module - 10GbE
Device Type
SFP+ transceiver module - LC single-mode
Packaged Quantity
10 (specifications are for single item)
Form Factor
Plug-in module
Cabling Type
10GBase-LR
Data Transfer Rate
10 Gbps
Optical Wave Length
1310 nm
Data Link Protocol
10GbE
Max Transfer Distance
300 m
Dimensions (WxDxH)
1.37 cm x 5.57 cm x 1.19 cm
Weight
19.2 g
Manufacturer Warranty
5-year warranty
General
Packaged Quantity
10 (specifications are for single item)
Device Type
SFP+ transceiver module
Form Factor
Plug-in module
Networking
Connectivity Technology
Wired
Cabling Type
10GBase-LR
Data Link Protocol
10GbE
Data Transfer Rate
10 Gbps
Optical Wave Length
1310 nm
Max Transfer Distance
300 m
Compliant Standards
IEEE 802.3ae
Expansion / Connectivity
Interfaces
1 x Ethernet 10GBase-LR - LC single-mode x 2
Compatible Slots
1 x SFP+
Miscellaneous
MTBF
4,986,536 hours
Compliant Standards
UL 1950, CSA 22.2 No. 950, RoHS
Dimensions & Weight
Width
1.37 cm
Depth
5.57 cm
Height
1.19 cm
Weight
19.2 g
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
70 °C
