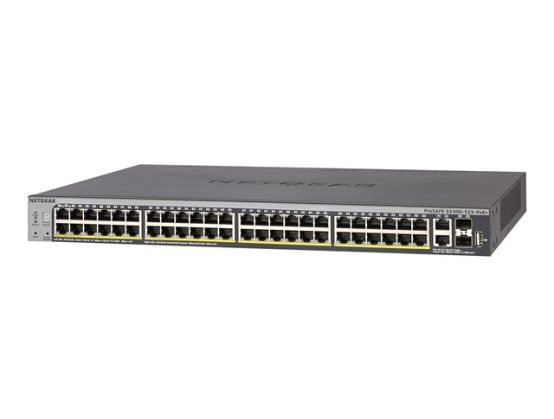

Name: ProSAFE S3300-52X-PoE+ 48-Port POE Gigabit Stackable Smart Managed Switch (With 2x 10-GbE SFP+ Fiber & 2x 10-GbE Copper)
Brand: NETGEAR
SKU: 1TNETNHS-052477
Price: 1171.14 GBP
Availability: OutOfStock

Overview

Main features

NETGEAR Smart S3300-52X-PoE+
Switch
smart
48 x 10/100/1000 (PoE+) + 2 x 10Gb Ethernet + 2 x 10Gb Ethernet SFP+
rack-mountable
PoE+ (390 W)
AC 100/230 V

Overview

The ProSAFE S3300 52PT Gigabit Stackable Smart Switch is a L2+ web based platform : PoE+ in a 48 port configuration. 4 dedicated 10G ports are included as standard (2 x 10GBase-T and 2 x SFP+) for stacking and/or uplinks to aggregation layers or storage and server connections. PoE/PoE+ support between 190W up to 1,440W with RPS (model dependent).

Specification

Product Description NETGEAR Smart S3300-52X-PoE+ - switch - 52 ports - smart - rack-mountable

Device Type Switch - 52 ports - smart - stackable

Enclosure Type Rack-mountable 1U

Subtype Gigabit Ethernet

Ports 48 x 10/100/1000 (PoE+) + 2 x 10Gb Ethernet + 2 x 10Gb Ethernet SFP+

Power Over Ethernet (PoE) PoE+

PoE Budget 390 W

Performance Bandwidth: 176 Gbps

Capacity VLANs supported: 256 ¦ ACL entries: 100 ¦ IPv4 routes (static): 32 ¦ DHCP snooping entries: 8000 ¦ ARP entries: 512 ¦ Forwarding table entries (Multicast): 512 ¦ Priority queues per port: 8

MAC Address Table Size 16K entries

Jumbo Frame Support 9KB

Routing Protocol Static IPv4 routing

Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, HTTP, HTTPS, TFTP, CLI

Features Flow control, trunking, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, ALG support, port mirroring, DiffServ support, WRR queuing, store and forward, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, SNTP support, WRED, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, MLD snooping, DAI, DHCP client, Energy Efficient Ethernet, dual firmware images, SPQ, CoS, IP source guard

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1as, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az, IEEE 802.1Qat, IEEE 802.1Qav, IEEE 802.1BA

Power AC 100/230 V (50/60 Hz)

Dimensions (WxDxH) 44 cm x 34.5 cm x 4.3 cm

Weight 5.54 kg

Localisation Latin America, North America, Europe

Manufacturer Warranty Limited lifetime warranty

General

Device Type Switch - 52 ports - smart - stackable

Enclosure Type Rack-mountable 1U

Subtype Gigabit Ethernet

Ports 48 x 10/100/1000 (PoE+) + 2 x 10Gb Ethernet + 2 x 10Gb Ethernet SFP+

Power Over Ethernet (PoE) PoE+

PoE Budget 390 W

Performance Bandwidth: 176 Gbps

Capacity VLANs supported: 256 ¦ ACL entries: 100 ¦ IPv4 routes (static): 32 ¦ DHCP snooping entries: 8000 ¦ ARP entries: 512 ¦ Forwarding table entries (Multicast): 512 ¦ Priority queues per port: 8

MAC Address Table Size 16K entries

Jumbo Frame Support 9KB

Max Units In A Stack 6

Routing Protocol Static IPv4 routing

Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, HTTP, HTTPS, TFTP, CLI

Authentication Method RADIUS, TACACS+

Features Flow control, trunking, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, ALG support, port mirroring, DiffServ support, WRR queuing, store and forward, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, SNTP support, WRED, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, MLD snooping, DAI, DHCP client, Energy Efficient Ethernet, dual firmware images, SPQ, CoS, IP source guard

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1as, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az, IEEE 802.1Qat, IEEE 802.1Qav, IEEE 802.1BA

Processor : 800 MHz

RAM 512 MB

Flash Memory 128 MB

Expansion / Connectivity

Interfaces 48 x 1000Base-T RJ-45 PoE+ ¦ 2 x 10GBase-T RJ-45 uplink/stacking ¦ 2 x 10Gbit LAN SFP+ uplink/stacking ¦ 1 x USB 2.0 Type A

Power

Power Device Internal power supply

Voltage Required AC 100/230 V (50/60 Hz)

Power Consumption Operational 1484.12 Watt

Features Redundant Power System (RPS) connector

Miscellaneous

Rack Mounting Kit Included

MTBF 216,809 hours

Compliant Standards CISPR 22 Class A, cUL, EN 60950, IEC950, UL 1950, EN55024, CSA 22.2 No. 950, EN55022 Class A, EN50082-1, CCC, RoHS, FCC Part 15 A, C-Tick Class A, VCCI Class A

Localisation Latin America, North America, Europe

Dimensions & Weight

Width 44 cm

Depth 34.5 cm

Height 4.3 cm

Weight 5.54 kg

Manufacturer Warranty

Service & Support Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - lifetime

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 50 °C

Humidity Range Operating 0 - 90% (non-condensing)

Min Storage Temperature -20 °C

Max Storage Temperature 70 °C

Humidity Range Storage 0 - 95% (non-condensing)
