CISCO

ONE ISR 4331 3GE 2NIM 1SM 4G FLASH 4G DRAM

Name: ONE ISR 4331 3GE 2NIM 1SM 4G FLASH 4G DRAM
Brand: CISCO
SKU: 1TNETNHS-029518
Price: 3508.75 GBP
Availability: OutOfStock

SKU

1TNETNHS-029518

Manufacture#: C1-CISCO4331/K9

£2923.96

£3508.75 inc VAT

Checking delivery…

Product details

Router 1GbE
WAN ports: 3
- rack-mountable

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

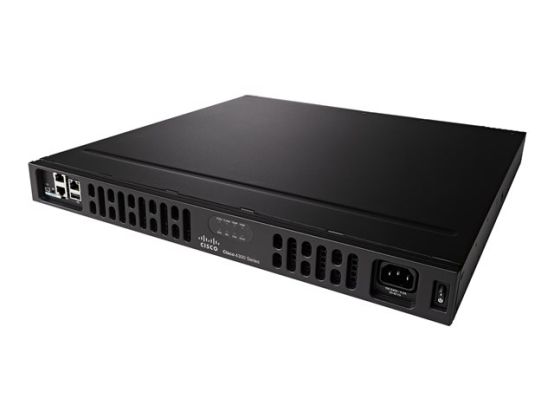

Cisco ONE ISR 4331
Router 1GbE
WAN ports: 3
- rack-mountable

Overview

This device is a modular router with LAN, WAN connectivity and several interface modules.

Specification

Product Description Cisco ONE ISR 4331 - router - rack-mountable

Device Type Router

Enclosure Type Rack-mountable - modular - 1U

WAN Ports Qty 3

Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet

Performance Aggregate throughput: 100 Mbps

Network / Transport Protocol IPSec, PPPoE, DHCP

Routing Protocol OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), IPv4-to-IPv6 Multicast

Remote Management Protocol SNMP, RMON

Features VPN support, VLAN support, Syslog support, IPv6 support, CBWFQ, WRED, wall mountable, ACL support, QoS, RADIUS support, NetFlow, IPFIX

Compliant Standards IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824

Power AC 120/230 V (50/60 Hz)

Dimensions (WxDxH) 43.815 cm x 43.815 cm x 4.455 cm

Weight 5 kg

Manufacturer Warranty 90 days warranty

General

Device Type Router

Enclosure Type Rack-mountable - modular - 1U

Connectivity Technology Wired

Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet

Performance Aggregate throughput: 100 Mbps

Network / Transport Protocol IPSec, PPPoE, DHCP

Routing Protocol OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), IPv4-to-IPv6 Multicast

Remote Management Protocol SNMP, RMON

Features VPN support, VLAN support, Syslog support, IPv6 support, CBWFQ, WRED, wall mountable, ACL support, QoS, RADIUS support, NetFlow, IPFIX

Compliant Standards IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824, CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, CS-03, R&TTE, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 3548 Class A, GB 4943, VCCI V-3, EN 61000, KN22, KN24, CNS 13438, EN 300 386, CAN/CSA-C22.2 No. 60950-1

RAM 4 GB (installed) / 16 GB (max) - DDR3 SDRAM

Flash Memory 4 GB (installed) / 16 GB (max)

Expansion / Connectivity

Interfaces WAN / LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Serial: 1 x console - RJ-45 ¦ Management: 1 x console - mini-USB Type B ¦ Serial: 1 x auxiliary - RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A ¦ 2 x SFP (mini-GBIC) ¦ Management: 1 x RJ-45

Expansion Slots 2 (total) / 2 (free) x NIM ¦ 1 (total) / 1 (free) x ISC ¦ 1 (total) / 1 (free) x Enhanced Service Module (SM-X) ¦ 2 (total) / 0 (free) x DIMM 240-pin

Power

Power Device Internal power supply - 250 Watt

Installed Qty 1 (installed) / 1 (max)

Voltage Required AC 120/230 V (50/60 Hz)

Miscellaneous

Rack Mounting Kit Included

Software / System Requirements

OS Provided Cisco IOS IP Base

Dimensions & Weight

Width 43.815 cm

Depth 43.815 cm

Height 4.455 cm

Weight 5 kg

Manufacturer Warranty

Service & Support Limited warranty - advance parts replacement - 90 days - response time: 10 days

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 40 °C

Humidity Range Operating 5 - 85%
