Opengear OM appliances combine the capabilities of a Smart OOB console server with the flexibility of automation.
The OM2200 console server is configured for data centers and high-density locations. As part of Opengear's network resilience platform, it provides a separate, secure management plane that supports advanced automation applications.

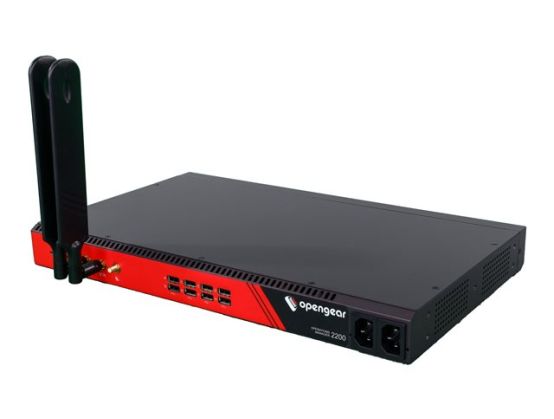

Product DescriptionOpengear OM2216-DDC-L - console server - dual DC power
Device TypeConsole server
Form FactorRack-mountable - 1U
Processor1 x AMD GX-412TC 1.4 GHz
RAM8 GB
Flash Memory16 MB
Hard Drive64 GB x 1 - SATA 6Gb/s
Ports Qty16
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, RS-232, LTE
Mobile Broadband AccessYes
Mobile Communication ProtocolHSPA+, LTE Advanced Pro
Mobile BandLTE B1/B12/B13/B18/B19/B2/B20/B26/B28/B29/B3/B30/B32/B4/B41/B42/B43/B46/B48/B5/B66/B7/B8/B9
Included AccessoriesRack mount kit, 2 x cellular aerials, cellular aerial extender
Dimensions (WxDxH)44 cm x 26 cm x 4.5 cm
Weight3.5 kg
Manufacturer Warranty4 years warranty
Extended Specification
General
Device TypeConsole server
Height (Rack Units)1U
Width44 cm
Depth26 cm
Height4.5 cm
Weight3.5 kg
Processor / Memory / Storage
Processors Installed1 x AMD GX-412TC 1.4 GHz
RAM8 GB DDR3 SDRAM
Flash Memory16 MB
Hard DriveSSD 64 GB x 1 - SATA 6Gb/s - M.2
Networking
Form FactorRack-mountable
Ports Qty16
Connectivity TechnologyWireless, wired
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, RS-232, LTE
Network / Transport ProtocolNTP, IPv4, IPv6
Remote Management ProtocolSNMP, HTTP, SSH
FeaturesFirewall protection, LDAP support, VLAN support, manageable, Management Information Base (MIB), Authentication, Authorization and Accounting (AAA), Python runtime, secure boot, Trusted Platform Module 2.0 (TPM 2.0)
Authentication MethodTACACS+, LDAP
Aerial
AntennaExternal detachable
Antenna Qty2
Communications
Mobile Broadband AccessYes
Mobile Communication ProtocolHSPA+, LTE Advanced Pro
Mobile BandLTE B1/B12/B13/B18/B19/B2/B20/B26/B28/B29/B3/B30/B32/B4/B41/B42/B43/B46/B48/B5/B66/B7/B8/B9
Expansion / Connectivity
Expansion Slots2 (total) / 2 (free) x SIM card
Interfaces2 x Ethernet 1000 - RJ-45/SFP (mini-GBIC) ¦ 1 x console - RJ-45 ¦ 16 x RS-232 - RJ-45 ¦ 8 x USB 2.0 - Type A ¦ 1 x management (micro-USB) ¦ 3 x USB 3.0 - Type A ¦ 1 x GPS in - SMA ¦ 2 x aerial - SMA
Miscellaneous
Included AccessoriesRack mount kit, 2 x cellular aerials, cellular aerial extender
Cables Included1 x network cable - 1.83 m ¦ 1 x RJ-45 to DB-9 cable
MTBF100,000 hours
Compliant StandardsEN 61000-4-2, IC, FCC, PTCRB, GCF, NCC, EN 61000-3-3:2013, EN 61000-3-2:2014, EN 61000-4-5:2014, JRF, JPA, EN 55032:2015 Class A, EN 61000-4-6:2008, EN 61000-4-3:2006+A1:2006+A2:2010, EN 61000-4-4:2007, EN 61000-4-8:2009, EN 61000-4-11:2010, EN 61000-4-28:2010
