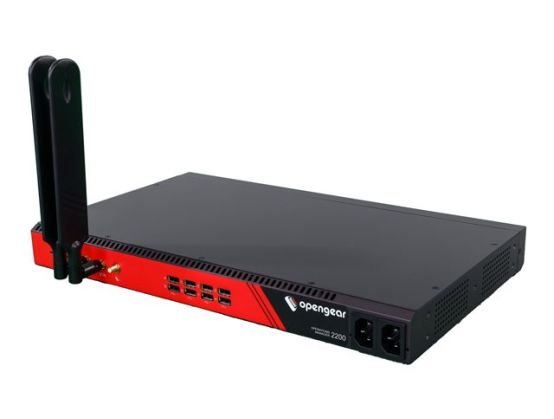

OM2224-24E-10G 24 SELECTABLE SERIAL PORTS + 24X 1GBE SWITCH
Manufacture#: OM2224-24E-10G-DDC
£4681 .24
£5617.49 inc VAT
Checking delivery…
Product details
Console server
dual DC power
24 ports
RS-232, 10GbE
Payment options available at checkout
Main features
Opengear OM2224-24E-10G
Console server
dual DC power
24 ports
RS-232, 10GbE
1U
rack-mountable
Overview
Opengear OM appliances combine the capabilities of a Smart OOB console server with the flexibility of automation.
Product Description
Opengear OM2224-24E-10G - console server - dual DC power
Device Type
Console server
Form Factor
Rack-mountable - 1U
Processor
1 x AMD GX-412TC 1.4 GHz
RAM
8 GB
Flash Memory
16 MB
Hard Drive
64 GB x 1 - SATA 6Gb/s
Ports Qty
24
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232, 10 Gigabit Ethernet
Included Accessories
Rack mount kit
Power Redundancy
Yes
Dimensions (WxDxH)
44 cm x 26 cm x 4.5 cm
Weight
3.5 kg
Manufacturer Warranty
4 years warranty
General
Device Type
Console server
Height (Rack Units)
1U
Built-in Devices
24-port switch
Width
44 cm
Depth
26 cm
Height
4.5 cm
Weight
3.5 kg
Processor / Memory / Storage
Processors Installed
1 x AMD GX-412TC 1.4 GHz
Max Supported Qty
1
RAM
8 GB DDR3 SDRAM
Flash Memory
16 MB
Hard Drive
SSD 64 GB x 1 - SATA 6Gb/s - M.2
Networking
Form Factor
Rack-mountable
Ports Qty
24
Connectivity Technology
Wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232, 10 Gigabit Ethernet
Network / Transport Protocol
OpenVPN
Remote Management Protocol
SSH
Features
Firewall protection, Python runtime, secure boot, Trusted Platform Module 2.0 (TPM 2.0), Docker Support
Authentication Method
Secure Shell (SSH), TACACS+
Expansion / Connectivity
Interfaces
24 x 1000Base-T - RJ-45 ¦ 2 x 10Gb Ethernet - SFP+ ¦ 24 x RS-232 - RJ-45 ¦ 8 x USB 2.0 - Type A ¦ 1 x console - micro-USB ¦ 2 x USB 3.0 - Type A
Miscellaneous
Included Accessories
Rack mount kit
Cables Included
1 x network cable - 1.83 m
MTBF
100,000 hours
Compliant Standards
EN 61000-4-2, EN 61000-3-3:2013, EN 61000-3-2:2014, EN 61000-4-5:2014, EN 55032:2015 Class A, EN 61000-4-6:2008, EN 61000-4-3:2006+A1:2006+A2:2010, EN 61000-4-4:2007, EN 61000-4-8:2009, EN 61000-4-11:2010, EN 61000-4-28:2010
Power
Power Device
Internal power supply
Installed Qty
2
Max Supported Qty
2
Power Redundancy
Yes
Power Consumption Operational
45 Watt
Manufacturer Warranty
Service & Support
Limited warranty - 4 Years
Environmental Parameters
Min Operating Temperature
5 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 90%
