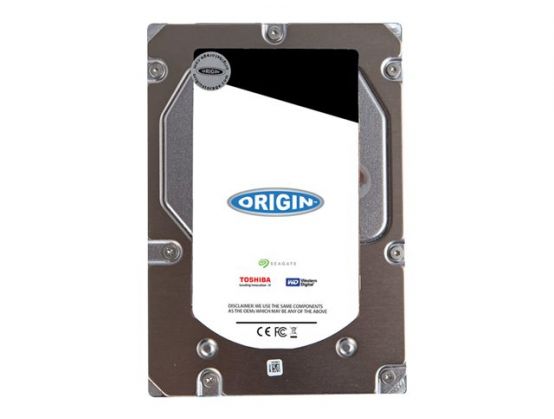

4TB 3.5IN NEARLINE SAS DRIVE .
Checking delivery…
Product details
Hard drive
4 TB
internal
3.5"
Payment options available at checkout
Main features
Origin Storage Nearline
Hard drive
4 TB
internal
3.5"
SAS 6Gb/s
nearline
7200 rpm
buffer: 128 MB
Overview
Origin Storage manufactures a full range of quality matched hard drive solutions for most major branded servers, laptops and desktops, such as Dell, Compaq, HP, Toshiba, and IBM. Origin Storage can supply replacements or upgrades in form factors, 2.5-inch to 3.5-inch connectivity's including IDE, SATA, SAS and SCSI and of course in all available capacities and spin speeds.
Product Description
Origin Storage Nearline - hard drive - 4 TB - SAS 6Gb/s
Type
Hard drive - internal - nearline
Capacity
4 TB
Form Factor
3.5"
Interface
SAS 6Gb/s
Data Transfer Rate
600 MBps
Buffer Size
128 MB
Spindle Speed
7200 rpm
Dimensions (WxDxH)
101.8 mm x 147 mm x 26.1 mm
Weight
750 g
General
Device Type
Hard drive - internal - nearline
Capacity
4 TB
Form Factor
3.5"
Interface
SAS 6Gb/s
Buffer Size
128 MB
Bytes per Sector
512
Width
101.8 mm
Depth
147 mm
Height
26.1 mm
Weight
750 g
Performance
Drive Transfer Rate
600 MBps (external)
Average Latency
4.16 ms
Spindle Speed
7200 rpm
Reliability
MTBF
2,000,000 hours
Expansion & Connectivity
Interfaces
1 x SAS 6Gb/s
Compatible Bay
3.5"
Power
Power Consumption
7.8 Watt (idle) ¦ 11.86 Watt (typical)
Software & System Requirements
OS Required
Linux, Microsoft Windows
Miscellaneous
Compliant Standards
RoHS
Environmental Parameters
Min Operating Temperature
5 °C
Max Operating Temperature
55 °C
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Operating
5 - 95%
Shock Tolerance (operating)
70 g
Shock Tolerance (non-operating)
300 g
Vibration Tolerance (operating)
0.5 g
Vibration Tolerance (non-operating)
0.25 g
