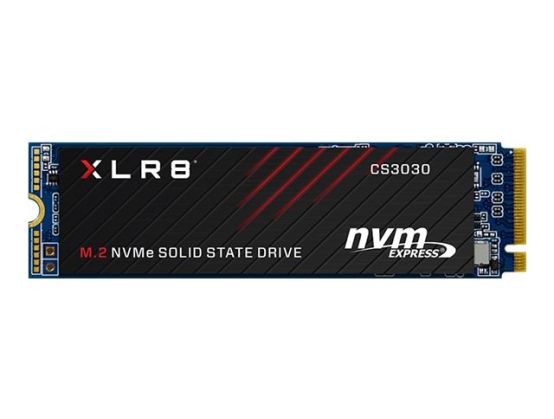

PNY XLR8 CS3030 - SSD - 1 TB - PCIe
Manufacture#: M280CS3030-1TB-RB
Checking delivery…
Product details
SSD
1 TB
internal
M.2 2280
Payment options available at checkout
Main features
PNY XLR8 CS3030
SSD
1 TB
internal
M.2 2280
PCIe
Overview
The PNY CS3030 M.2 NVMe SSD is an excellent choice for an NVMe upgrade from a SATA based solid state drive in an existing NVMe enabled PC or Mac desktop or laptop computer. The CS3030 drive is designed to be a high performance SATA SSD replacement to help realize faster boot times, quicker application launches, and better overall system performance.
Faster boot up and quicker application launch
Better overall system performance
Reliable storage
Low power consumption, cool and quiet operation
Product Description
PNY XLR8 CS3030 - SSD - 1 TB - PCIe
Type
Solid state drive - internal
Capacity
1 TB
NAND Flash Memory Type
3D triple-level cell (TLC)
Form Factor
M.2 2280
Interface
PCIe
Features
RAID 0+1 - factory configured, TRIM support, Enhanced Secure Erase, NVM Express (NVMe) 1.3
Dimensions (WxDxH)
22 mm x 80 mm x 2 mm
Weight
6.6 g
Manufacturer Warranty
5-year warranty
General
Device Type
Solid state drive - internal
Capacity
1 TB
NAND Flash Memory Type
3D triple-level cell (TLC)
Form Factor
M.2 2280
Interface
PCIe
Features
RAID 0+1 - factory configured, TRIM support, Enhanced Secure Erase, NVM Express (NVMe) 1.3
Width
22 mm
Depth
80 mm
Height
2 mm
Weight
6.6 g
Performance
SSD Endurance
1665 TB
Internal Data Rate
3500 MBps (read) / 3000 MBps (write)
Reliability
MTBF
2,000,000 hours
Recoverable Errors
1 per 10^15
Expansion & Connectivity
Compatible Bay
M.2 2280
Software & System Requirements
OS Required
Linux, Apple MacOS X, Ubuntu 14, Microsoft Windows XP / Vista / 7 / 8 / 10
Miscellaneous
Compliant Standards
BSMI, FCC, RoHS, REACH
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
70 °C
Min Storage Temperature
-40 °C
Max Storage Temperature
85 °C
