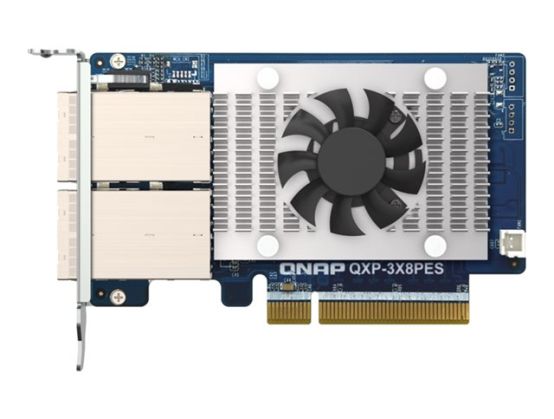

QNAP QXP-3X8PES - Expansion module - PCIe 3.0 x8 low profile - SAS-3 x 8
Checking delivery…
Product details
Expansion module
PCIe 3.0 x8 low profile
SAS-3 x 8
Payment options available at checkout
Main features
QNAP QXP-3X8PES
Expansion module
PCIe 3.0 x8 low profile
SAS-3 x 8
Overview
The QXP-3X8PES PCIe card is designed for expanding the capacity of a QuTS hero or QTS NAS by connecting it to QNAP TL PCIe Interface JBOD. Multiple JBODs can be daisy-chained via high-speed cables to scale up to petabyte-level storage to handle exponential data growth caused by archiving/backing up surveillance recordings, RAW multimedia files, big data, and virtualization applications.
Product Description
QNAP QXP-3X8PES - expansion module - PCIe 3.0 x8 - SAS-3 x 8
Device Type
Expansion module
Form Factor
Plug-in module - low profile
Interface (Bus) Type
PCI Express 3.0 x8
PCI Specification Revision
PCIe 3.0
Ports
SAS-3 x 8
Dimensions (WxDxH)
6.89 cm 1.826 cm
Cable Length
11.265 cm
Data Transfer Rate
64 Gbps
System Requirements
QNAP QuTS hero 5.1.2 or later, QNAP QTS 5.1.2 or later
Manufacturer Warranty
3-year warranty
General
Device Type
Expansion module
Form Factor
Plug-in module - low profile
Interface (Bus) Type
PCI Express 3.0 x8
PCI Specification Revision
PCIe 3.0
Networking
Ports
SAS-3 x 8
Connectivity Technology
Wired
Data Transfer Rate
64 Gbps
Features
2 channels, JBOD Expansion
Expansion / Connectivity
Interfaces
2 x SAS 12Gb/s - SFF-8644
Software / System Requirements
OS Required
QNAP QuTS hero 5.1.2 or later, QNAP QTS 5.1.2 or later
Dimensions & Weight
Width
6.89 cm
Height
1.826 cm
Cable Length
11.265 cm
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 95% RH (non-condensing)
