QNAP

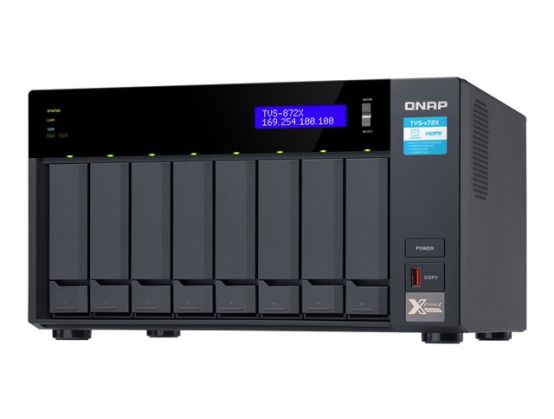

QNAP TVS-872X - NAS server

Name: QNAP TVS-872X - NAS server
Brand: QNAP
SKU: 1TSTOHDA-009743
Price: 1965.32 GBP
Availability: OutOfStock

SKU

1TSTOHDA-009743

Manufacture#: TVS-872X-I5-8G

£1637.77

£1965.32 inc VAT

Checking delivery…

Product details

NAS server
8 bays
SATA 6Gb/s
RAID 0, 1, 5, 6, 10, 50, JBOD, 60

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

QNAP TVS-872X
NAS server
8 bays
SATA 6Gb/s
RAID 0, 1, 5, 6, 10, 50, JBOD, 60
RAM 8 GB
Gigabit Ethernet / 2.5 Gigabit Ethernet / 5 Gigabit Ethernet / 10 Gigabit Ethernet
iSCSI support

Overview

Powered by an Intel Core i3/i5 processor, the high-performance TVS-872X NAS features built-in 10GbE connectivity for boosted virtualization performance and streamlined backup and application workflows from multiple workstations. The TVS-872X also supports M.2 NVMe SSDs for cache acceleration, PCIe expansion, multi-cloud backup, 4K HDMI 2.0 output and real-time transcoding, alongside expandable storage capacity and feature-rich apps to perform as a cost-efficient, reliable, and multifunctional NAS solution.

Specification

Product Description QNAP TVS-872X - NAS server

Device Type NAS server

Host Connectivity Gigabit Ethernet / 2.5 Gigabit Ethernet / 5 Gigabit Ethernet / 10 Gigabit Ethernet

Installed Devices / Modules Qty 0 (installed) / 8 (max)

Dimensions (WxDxH) 32.93 cm x 27.96 cm x 18.82 cm

Weight 7.06 kg ()

Processor 1 x Intel Core i5 8400T 1.7 GHz (6-core)

Storage Controller RAID SATA 6Gb/s RAID 0, 1, 5, 6, 10, 50, JBOD, 60

Networking 100Mb LAN, GigE, 10 GigE, 5 GigE, 2.5 GigE

RAM 8 GB

Power AC 100-240 V

Storage Operating System QNAP QTS 4.5.1

System Requirements Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 6.6, Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Ubuntu 14.04 or later, Microsoft Windows Server 2019, SuSE Linux 12 or later, Oracle Solaris 10 or later

Manufacturer Warranty 2-year warranty

General

Device Type NAS server

Host Connectivity Gigabit Ethernet / 2.5 Gigabit Ethernet / 5 Gigabit Ethernet / 10 Gigabit Ethernet

Total Storage Capacity 0 GB

Installed Devices / Modules Qty 0 (installed) / 8 (max)

Width 32.93 cm

Depth 27.96 cm

Height 18.82 cm

Weight 7.06 kg ()

Built-in Devices Led panel

Processor / Memory

Processors Installed 1 x Intel Core i5 8400T 1.7 GHz

Number of Cores 6-core

Max Supported Qty 1

Max Turbo Speed 3.3 GHz

RAM 8 GB (installed) / 64 GB (supported) - DDR4

Flash Memory Installed 5 GB

Storage Controller

Type RAID

Interface Type SATA 6Gb/s

RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60

Networking

Data Link Protocol 100Mb LAN, GigE, 10 GigE, 5 GigE, 2.5 GigE

Network / Transport Protocol TCP/IP, PPTP, L2TP, IPSec, DHCP, DDNS, RTSP, SMSC, HTTP, HTTPs, IPv4, IPv6, Telnet

Remote Management Protocol SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, LDAP

Network Services Compatibility Microsoft Active Directory (AD), File Level Security (ACLs), DHCP, DDNS, Microsoft CIFS, FTP, FTPS, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, SFTP, Network File System v3 (NFS v3), Network File System v4 (NFS v4)

Features Network monitoring, NAT support, LDAP support, wake on LAN (WOL), Syslog support, Spanning Tree Protocol (STP) support, file sharing, SMS alert, BitTorrent Client, online RAID capacity expansion, online RAID level migration, Apple Time Machine compatible, e-mail notification, ONVIF support, Dropbox support, built-in hardware transcoding, push notification, Amazon Cloud Drive support, Yandex Disk support, Microsoft OneDrive support, Chromecast support, iSCSI Extensions over RDMA (iSER), file station, hubiC support, OpenStack Swift-compatible, WebDAV server support, IFTTT agent, EXT4 file system, SSD trim, iSCSI LUN clone/snapshot, Amazon S3 support, Amazon Glacier suport, Performance Monitoring, HiDrive support, RTRR server, RTRR client, hybrid backup sync, Qfiling, Qsirch, Qcontactz, Qfinder Pro, Q'center (NAS CMS), Rsync compatible, WebRTC, snapshot (folder and LUN), Alibaba Cloud OSS support, Backblaze B2 support, OpenVPN pass-through, VJBOD Cloud, myQNAPcloud, Qsync, QuMagie, Qmiix agent, iSCSI initiator

Encryption Algorithm SSL, TLS, FIPS 140-2, 256-bit AES

Compliant Standards DLNA CERTIFIED, UPnP

Expansion / Connectivity

Expansion Bays 8 (total) / 8 (free) x hot-swap - 2.5" / 3.5"

Expansion Slots 2 (total) / 2 (free) x M.2 2280 ¦ 1 (total) / 1 (free) x PCI Express 3.0 x16 ¦ 1 (total) / 1 (free) x PCI Express 3.0 x4

Interfaces 2 x Ethernet 1000Base-T - RJ-45 ¦ 1 x Ethernet 10Gb - RJ-45 ¦ 1 x USB 3.2 Gen 1 - Type A ¦ 2 x USB 3.2 Gen 2 - Type A ¦ 2 x USB 3.2 Gen 2 - Type C ¦ 1 x HDMI output - Type A

Miscellaneous

Cables Included 1 x 10GBase-T cable

Features Security lock slot (cable lock sold separately), audible alarm, built-in 3 cooling fans, scheduled power on/off, power on after power fail, Mobile Transfer Protocol (MTP), Intelligent Platform Management Interface (IPMI), S.M.A.R.T. support, dual boot

Security Slot Type Kensington security slot

Compliant Standards FIPS 140-2, TLS v1.2, TLS v1.0, TLS v1.1, SSL

Included Accessories 2 x hard drive security key, 2 x M.2 SSD heatsink, flat head screws (for 2.5" HDD), flat head screws (for 3.5" HDD), power cable

Power

Power Device Internal power supply

Voltage Required AC 100-240 V

Power Consumption Operational 65.03 Watt ()

Power Consumption Stand by 41.47 Watt

Power Provided 250 Watt

Software / System Requirements

Storage Operating System QNAP QTS 4.5.1

OS Required Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 6.6, Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Ubuntu 14.04 or later, Microsoft Windows Server 2019, SuSE Linux 12 or later, Oracle Solaris 10 or later

Manufacturer Warranty

Service & Support Limited warranty - 2 years

Dimensions & Weight (Shipping)

Shipping Weight 9.19 kg

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 40 °C

Humidity Range Operating 5 - 95% (non-condensing)

Sound Emission 24.2 dBA
