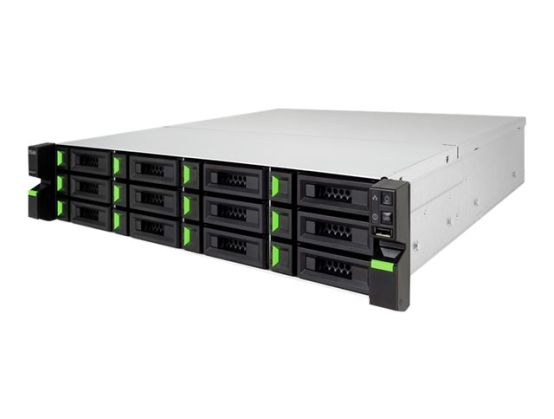

Qsan XCubeNAS XN5012RE - NAS server
£2556 .57
£3067.88 inc VAT
Checking delivery…
Product details
NAS server
12 bays
rack-mountable
SATA 6Gb/s
Payment options available at checkout
Main features
Qsan XCubeNAS XN5012RE
NAS server
12 bays
rack-mountable
SATA 6Gb/s
RAM 8 GB
Gigabit Ethernet
2U
Overview
The XN5012RE is next generation high-efficiency NAS system which is designed for composite SMB and enterprise applications for enterprise and SMB users. The system hardware features the Intel enterprise level Celeron CPU and up to 64GB of DDR4 RAM. The additional PCIe slots also delivered to enhance the performance and scale up with expansion enclosures. Combined with the latest hardware technology, the XN5012RE is able to fulfill various demands efficiently.
Built-in 1GbE network interface
Additional PCIe slot for 10 GbE / Thunderbolt 3 / SAS adapter card that can demand high bandwidth and capacity expansion
Tool-less design for chassis-opening
Product Description
Qsan XCubeNAS XN5012RE - NAS server
Device Type
NAS server
Host Connectivity
Gigabit Ethernet
Enclosure Type
Rack-mountable - 2U
Max Supported Capacity
168 TB
Installed Devices / Modules Qty
0 (installed) / 12 (max)
Dimensions (WxDxH)
43.8 cm x 51 cm x 8.85 cm
Weight
12.7 kg ()
Processor
1 x Intel Celeron 2.9 GHz (Dual-Core)
Storage Controller
SATA SATA 6Gb/s
Networking
1GbE
RAM
8 GB
Power
AC 120/230 V (50/60 Hz)
Power Redundancy
Yes
Manufacturer Warranty
3-year warranty
General
Device Type
NAS server
Host Connectivity
Gigabit Ethernet
Enclosure Type
Rack-mountable - 2U
Max Supported Capacity
168 TB
Installed Devices / Modules Qty
0 (installed) / 12 (max)
Width
43.8 cm
Depth
51 cm
Height
8.85 cm
Weight
12.7 kg ()
Processor / Memory
Processors Installed
1 x Intel Celeron 2.9 GHz
Number of Cores
Dual-Core
Max Supported Qty
1
RAM
8 GB (installed) / 64 GB (supported) - DDR4
Flash Memory Installed
8 GB
Storage Controller
Type
SATA
Interface Type
SATA 6Gb/s
Networking
Data Link Protocol
1GbE
Features
Wake on LAN (WOL), 3 fans
Expansion / Connectivity
Expansion Bays
12 (total) / 12 (free) x hot-swap - 3.5"
Expansion Slots
1 x PCI Express 3.0 x8 ¦ 1 x PCI Express 3.0 x4
Interfaces
4 x Ethernet 1000Base-T - RJ-45 ¦ 1 x USB 2.0 ¦ 4 x USB 3.0 ¦ 1 x HDMI output
Miscellaneous
Compliant Standards
VCCI, BSMI, FCC, RCM
Power
Power Device
Internal power supply
Installed Qty
2
Max Supported Qty
2
Power Redundancy
Yes
Power Redundancy Scheme
1+1
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
300 Watt
Power Provided
250 Watt
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Dimensions & Weight (Shipping)
Shipping Weight
14.1 kg
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 80% (non-condensing)
