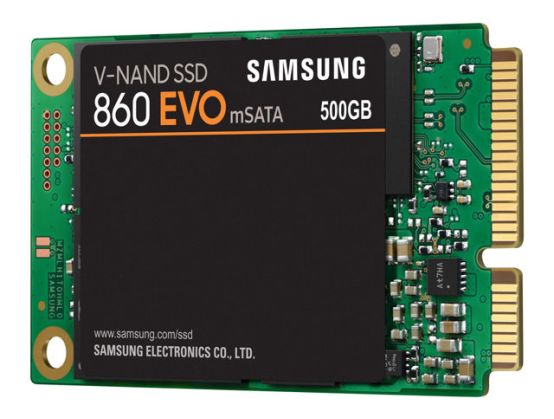

Samsung 860 EVO MZ-M6E500BW - SSD - 500 GB - SATA 6Gb/s
Manufacture#: MZ-M6E500BW
Checking delivery…
Product details
- SSD
- encrypted
- 500 GB
- internal
Payment options available at checkout
Main features
- Samsung 860 EVO MZ-M6E500BW
- SSD
- encrypted
- 500 GB
- internal
- mSATA
- SATA 6Gb/s
- buffer: 512 MB
- 256-bit AES
- TCG Opal Encryption 2.0
Overview
Specially designed for mainstream PCs and laptops, with the advanced V-NAND and a robust algorithm-based controller, this is a fast and reliable SSD.
Product Description
Samsung 860 EVO MZ-M6E500BW - SSD - 500 GB - SATA 6Gb/s
Type
Solid state drive - internal
Capacity
500 GB
Hardware Encryption
Yes
Encryption Algorithm
256-bit AES
NAND Flash Memory Type
3D multi-level cell (MLC)
Form Factor
mSATA
Interface
SATA 6Gb/s
Data Transfer Rate
600 MBps
Buffer Size
512 MB
Features
TRIM support, Auto Garbage Collection Algorithm, TurboWrite Technology, eDrive, Samsung MJX Controller, 3-bit 3D V-NAND Technology, Low Power DDR4 SDRAM Cache, S.M.A.R.T., 256-bit AES, IEEE 1667
Dimensions (WxDxH)
29.85 mm x 50.8 mm x 3.85 mm
Weight
8.5 g
Manufacturer Warranty
5-year warranty
General
Device Type
Solid state drive - internal
Capacity
500 GB
Hardware Encryption
Yes
Encryption Algorithm
256-bit AES
NAND Flash Memory Type
3D multi-level cell (MLC)
Form Factor
mSATA
Interface
SATA 6Gb/s
Buffer Size
512 MB
Features
TRIM support, Auto Garbage Collection Algorithm, TurboWrite Technology, eDrive, Samsung MJX Controller, 3-bit 3D V-NAND Technology, Low Power DDR4 SDRAM Cache, S.M.A.R.T., 256-bit AES, IEEE 1667
Width
29.85 mm
Depth
50.8 mm
Height
3.85 mm
Weight
8.5 g
Performance
SSD Endurance
300 TB
Drive Transfer Rate
600 MBps (external)
Internal Data Rate
550 MBps (read) / 520 MBps (write)
Maximum 4KB Random Write
88000 IOPS
Maximum 4KB Random Read
97000 IOPS
Reliability
MTBF
1,500,000 hours
Expansion & Connectivity
Interfaces
1 x SATA 6 Gb/s
Compatible Bay
mSATA
Power
Power Consumption
2.5 Watt (average) ¦ 4.5 Watt (maximum)
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
70 °C
Shock Tolerance (operating)
1500 g @ 0.5 ms half-sine
