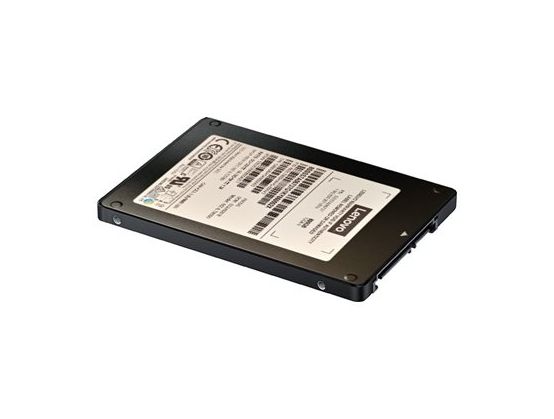

Samsung PM9A3 - SSD - Read Intensive - encrypted - 1.92 TB - hot-swap - 2.5" - U.2 PCIe 4.0 x4 (NVMe) - TCG Opal Encryption, Self-Encrypting Drive (SED) - for ThinkSystem SD630 V2, SR630 V3, SR635, SR645 V3, SR65X V3, SR665 V3, SR670 V2, SR675 V3
£3887 .56
£4665.07 inc VAT
Checking delivery…
Product details
SSD
Read Intensive
encrypted
1.92 TB
Payment options available at checkout
Main features
Samsung PM9A3
SSD
Read Intensive
encrypted
1.92 TB
hot-swap
2.5"
U.2 PCIe 4.0 x4 (NVMe)
Self-Encrypting Drive (SED), TCG Opal Encryption
Overview
The ThinkSystem PM9A3 Read Intensive NVMe Solid-State Drives (SSDs) are general-purpose yet high-performance family of NVMe SSDs. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.
Product Description
Samsung PM9A3 - SSD - Read Intensive - 1.92 TB - U.2 PCIe 4.0 x4 (NVMe)
Type
Solid state drive - hot-swap
Capacity
1.92 TB
Hardware Encryption
Yes
Form Factor
2.5"
Interface
U.2 PCIe 4.0 x4 (NVMe)
Drive Class
Read Intensive
Features
32-layer V-NAND technology, S.M.A.R.T.
Dimensions (WxDxH)
7 mm x 10 mm x 0.7 mm
Weight
70 g
Manufacturer Warranty
1-year warranty
General
Device Type
Solid state drive - hot-swap
Capacity
1.92 TB
Hardware Encryption
Yes
Form Factor
2.5"
Interface
U.2 PCIe 4.0 x4 (NVMe)
Features
32-layer V-NAND technology, S.M.A.R.T.
Width
7 mm
Depth
10 mm
Height
0.7 mm
Weight
70 g
Performance
Drive Writes Per Day (DWPD)
1
SSD Endurance
3504 TB
Drive Class
Read Intensive
Internal Data Rate
6800 MBps (read) / 2700 MBps (write)
4KB Random Read
850000 IOPS
4KB Random Write
130000 IOPS
Average Latency
20 µs
Reliability
MTBF
2,000,000 hours
Recoverable Errors
1 per 10^17
Expansion & Connectivity
Interfaces
1 x U.2 PCIe 4.0 x4 (NVMe)
Compatible Bay
2.5"
Power
Power Consumption
10 Watt (read) ¦ 12.5 Watt (write)
Miscellaneous
Compliant Standards
TUV, VCCI, BSMI, CB, IC, FCC, KC, RCM, C-UL-US
Manufacturer Warranty
Service & Support
Limited warranty - replacement - 1 year
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
70 °C
Min Storage Temperature
-40 °C
Max Storage Temperature
85 °C
Humidity Range Operating
5 - 95% (non-condensing)
Shock Tolerance (non-operating)
1500 g @ 0.5 ms
Vibration Tolerance (non-operating)
20 gRMS @ 10-2000 Hz
