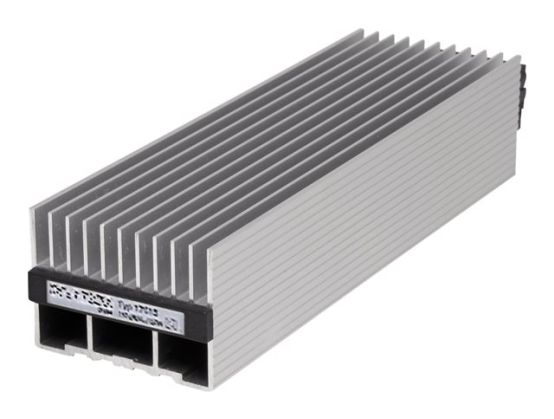

HEATING RESISTOR 110-250V 100W NSYCR100WU2
Manufacture#: NSYCR100WU2
Checking delivery…
Product details
Enclosure heaters without fan
DIN rail mountable
AC 110-250 V
Payment options available at checkout
Main features
Schneider ClimaSys CR 100W
Enclosure heaters without fan
DIN rail mountable
AC 110-250 V
Overview
ClimaSys PTC heating resistance. 100W, 110-250V AC, 50/60 Hz. Vertical operating position. -40-70 °C ambient temp for operation. 35 mm DIN rail mounting support. Extruded aluminium body. IP20 Protection. Electrical protection needed, must be installed with a thermal controller.
Product Description
Schneider ClimaSys CR 100W - enclosure heaters without fan
Product Type
Enclosure heaters without fan
Placing / Mounting
DIN rail mountable
Voltage Required
AC 110-250 V
Product Material
Extruded aluminium
Dimensions (WxDxH)
8.5 cm x 6.5 cm x 20 cm
Features
Mercury free, vertical orientation
Manufacturer Warranty
18 months warranty
General
Product Type
Enclosure heaters without fan
Placing / Mounting
DIN rail mountable
Voltage Required
AC 110-250 V
Product Material
Extruded aluminium
Width
8.5 cm
Depth
6.5 cm
Height
20 cm
Shipping Dimensions (WxDxH) / Weight
546.33 g
Miscellaneous
Features
Mercury free, vertical orientation
Compliant Standards
REACH, EU RoHS, WEEE, REACH SvHC, IP20, UL, VDE
Manufacturer Warranty
Service & Support
Limited warranty: - 18 months
Environmental Parameters
Min Operating Temperature
-40 °C
Max Operating Temperature
70 °C
