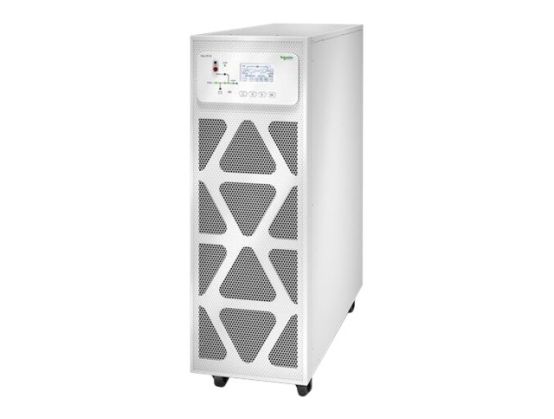

Schneider Electric Easy UPS 3S 20kVA 400V 3:3 - UPS - AC 400 V - 20 kW - 20000 VA - 3-phase - no battery - RS-232, RS-485, USB - white - with Start-Up Service
£4617 .40
£5540.88 inc VAT
Checking delivery…
Product details
UPS
AC 400 V
20 kW
20000 VA
Payment options available at checkout
Main features
Schneider Electric Easy UPS 3S 20kVA 400V 3:3
UPS
AC 400 V
20 kW
20000 VA
3-phase
no battery
RS-232, RS-485, USB
white
with Start-Up Service
Overview
High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 20 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is supplied without batteries, so you can easily customize the battery solution.
Product Description
Schneider Electric Easy UPS 3S 20kVA 400V 3:3 - UPS - 20 kW - 20000 VA
Device Type
UPS - external
Bundled Services
Start-Up Service
Weight
58 kg
Input Wiring
3-phase
Input Voltage
AC 400 V
Output Voltage
400 V
Power Capacity
20 kW / 20000 VA
Battery
No battery
Networking
RS-232, RS-485, USB
Colour
White
Dimensions (WxDxH)
25 cm x 80 cm x 77 cm
Manufacturer Warranty
1-year warranty
General
Device Type
UPS - external
Bundled Services
Start-Up Service
Colour
White
Power Device
UPS Technology
On-line
Input Voltage
AC 400 V
Input Voltage Range
AC 304 - 477 V
Frequency Provided
50/60 Hz
Input Wiring
3-phase
Frequency Required
45 - 65 Hz
Output Voltage
400 V 50/60 Hz
Power Capacity
20 kW / 20000 VA
Output Waveform
Sinewave
Circuit Protection
Fuse
Power Factor (PF)
0.99
Total Harmonic Distortion (THD)
3 %
Networking
Remote Management Interface
RS-232, RS-485, USB
Expansion / Connectivity
Expansion Slots
Expansion Slot
Miscellaneous
Features
Built-in maintenance bypass, LCD display
Compliant Standards
IP20, EAC, IEC 62040-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE
Manufacturer Warranty
Service & Support
Limited warranty - 1 year - on-site
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95% (non-condensing)
Sound Emission
60 dB
Dimensions & Weight
Width
25 cm
Depth
80 cm
Height
77 cm
Weight
58 kg
Dimensions & Weight (Shipping)
Shipping Width
40 cm
Shipping Depth
98.2 cm
Shipping Height
101.5 cm
Shipping Weight
75 kg
