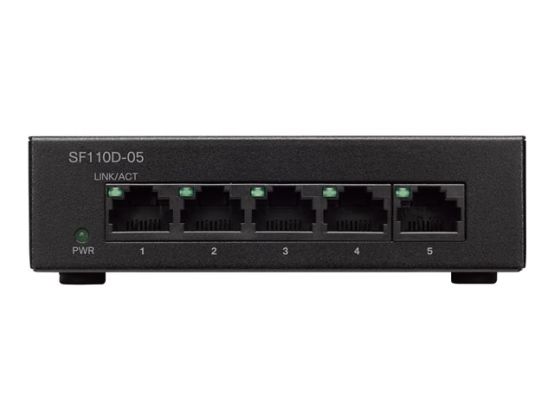

SF110D-05 5-Port 10/100 Desktop Switch
Manufacture#: SF110D-05-EU
Checking delivery…
Product details
Switch
unmanaged
5 x 10/100
desktop, wall-mountable
Payment options available at checkout
Main features
Cisco Small Business SF110D-05
Switch
unmanaged
5 x 10/100
desktop, wall-mountable
DC power
Overview
The Cisco SF110D-05 Switch delivers basic network connectivity and reliability for small businesses, without complexity. This switch provides all of the features, expandability, and investment protection you expect from Cisco, with no installation software and nothing to configure.¦Just plug it in, connect your computers and other business equipment, and get to work.
Product Description
Cisco Small Business SF110D-05 - switch - 5 ports - unmanaged
Device Type
Switch - 5 ports - unmanaged
Subtype
Fast Ethernet
Ports
5 x 10/100
Performance
Switching capacity: 1 Gbps ¦ Forwarding performance (64-byte packet size): 0.74 Mpps
Capacity
QoS hardware queues: 4
Jumbo Frame Support
9216 bytes
Features
Auto-uplink (auto MDI/MDI-X), WRR queuing, QoS, fanless, Energy Efficient Ethernet, security lock slot (cable lock sold separately), cable test
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
Power
DC 12 V 500 mA (operating)
Dimensions (WxDxH)
9.26 cm x 9.06 cm x 2.7 cm
Weight
220 g
Localisation
Europe
Manufacturer Warranty
Limited lifetime warranty
General
Device Type
Switch - 5 ports - unmanaged
Enclosure Type
Desktop, wall-mountable
Subtype
Fast Ethernet
Ports
5 x 10/100
Performance
Switching capacity: 1 Gbps ¦ Forwarding performance (64-byte packet size): 0.74 Mpps
Capacity
QoS hardware queues: 4
Jumbo Frame Support
9216 bytes
Features
Auto-uplink (auto MDI/MDI-X), WRR queuing, QoS, fanless, Energy Efficient Ethernet, security lock slot (cable lock sold separately), cable test
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
RAM
128 MB
Flash Memory
128 MB
Status Indicators
System, link/activity
Expansion / Connectivity
Interfaces
5 x 100Base-TX RJ-45
Power
Power Device
External power adapter
Voltage Required
DC 12 V
Electric Current Required
500 mA (operating)
Miscellaneous
Compliant Standards
UL 60950, FCC CFR47 Part 15, CSA 22.2
Localisation
Europe
Dimensions & Weight
Width
9.26 cm
Depth
9.06 cm
Height
2.7 cm
Weight
220 g
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-20 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 90% (non-condensing)
