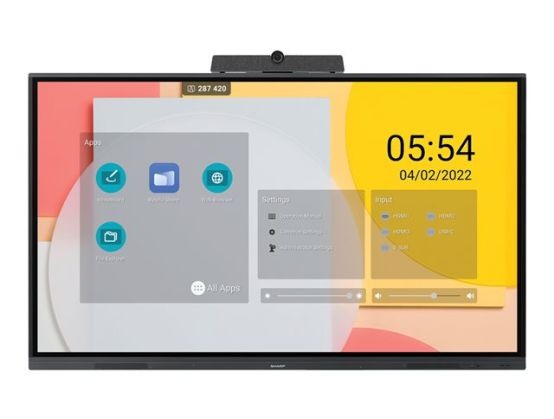

86" Diagonal Class L2B Series LED-backlit LCD display
interactive
with touchscreen (multi touch)
Android
4K UHD (2160p) 3840 x 2160
Direct LED
Overview
The BIG PAD L2B range of smart interactive displays combines genuine 4K reading and writing and an intuitive Pen-on-Paper user experience with Zero Bonding and Sharp's PrecisionTouch technology. The single USB-C connector makes it so simple to walk into a room, plug in your device and start working together straightaway. The L2B series also features an integrated Android PC with whiteboard, overlay writing mode and wireless screen sharing functionality as well as graded security to help enhance your productivity. The BIG PAD L2B series is the perfect choice for busy office environments, boardrooms, meeting rooms and training sessions that require quick responsive operation and smart integrated collaboration tools. It encourages effective group teamwork, promotes idea sharing and helps people deliver great presentations and achieve better meeting outcomes.
Pen-on-Paper user experience
Out-of-the-box collaboration
BYOD wireless collaboration
Maximum flexibility
Secure by design
Pen-on-paper user experienceZero Bonding and Sharp's PrecisionTouch technology enable highly accurate and responsive writing and drawing with up to 20 touch points.Out-of-the-box collaborationThe integrated Android PC features a powerful home screen launcher offering fast and flexible access to a range of pre-installed applications.BYOD wireless collaborationWirelessly share content from any device via the integrated Android PC or utilize the OPS slot to extend the BIG PADs functionality with third-party add-ons and solutions.Maximum flexibilityProvides exceptional freedom of use to meet the demands of even challenging corporate environments using USB-C, HDMI or VGA connectors.Secure by designGraded data security allows to adjust the level of security of the Android PC and maintain protection at the security level you need.
Product DescriptionSharp PN-L862B L2B Series - 86" LED-backlit LCD display - 4K - for interactive communication
Product TypeLED-backlit LCD flat panel display with touchscreen (multi touch)
Diagonal Class86"
Commercial UseYes - interactive
PlatformAndroid
Resolution3840 x 2160
Display Format4K UHD (2160p)
Video InterfaceHDMI
HDMI Ports Qty3 ports
ConnectivityWi-Fi, LAN, Bluetooth
PC InterfaceVGA (HD-15), USB-C
TechnologyIPS
LCD Backlight TechnologyDirect LED
Image Aspect Ratio16:9
TV TunerNo tuner
Speaker System2 speakers
Storage Capacity32 GB
USBYes
Included AccessoriesRemote control, 2 styluses, HDMI cable, batteries, USB cable (3 m), cable clamps
VoltageAC 100-240 V (50/60 Hz)
Power Consumption Stand by0.5 Watt
BatteryAAA type
Dimensions (WxDxH) - without stand195.7 cm x 8.57 cm x 115.95 cm
Weight62.5 kg
Manufacturer Warranty3-year warranty
Extended Specification
General
Product TypeLED-backlit LCD flat panel display
Power Consumption (Max)470 Watt
Diagonal Class86"
Commercial UseYes - interactive
Combined WithTouchscreen (multi touch)
SeriesL2B Series
PlatformAndroid
Operating SystemAndroid OS 9.0
TV TunerNo tuner
TV Tuner PresenceNo
Video InterfaceHDMI
HDMI Ports Qty3 ports
PC InterfaceVGA (HD-15), USB-C
ModesLandscape mode
DimensionsWithout stand
Width195.7 cm
Depth8.57 cm
Height115.95 cm
Weight62.5 kg
Display
LCD Display TechnologyIPS
Resolution3840 x 2160
Display Format4K UHD (2160p)
Image Aspect Ratio16:9
LCD Backlight TechnologyDirect LED
CoatingAnti-glare, 3.4 mm tempered glass, 3-8% haze, 8H hardness
Image Contrast Ratio1200:1
Brightness350 cd/m²
Viewing Angle178 degrees
Viewing Angle (Vertical)178 degrees
Touchpoints Qty20
Response Time8 ms
Operation Hours / Days16 / 7
FeaturesOpen Pluggable Specification slot, 16/7 operation time, precision touch technology, zero bonding technology
Stands & Mounts
Flat Panel Mount Interface800 x 600 mm
VESA CompatibilityYes
Video Features
Supported Computer Resolutions1024 x 768 (XGA), 640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 1024 (SXGA), 1280 x 960, 720 x 480, 1360 x 768, 1920 x 1080, 1440 x 900, 720 x 576, 3840 x 2160, 4096 x 2160, 1680 x 1050
Connector TypeVGA input ¦ 3 x HDMI input ¦ Audio line-in ¦ Audio line-out ¦ USB-C with 65W Power Delivery ¦ RS-232 input ¦ LAN ¦ USB 2.0 ¦ 2 x USB 3.0 ¦ 4 x USB 3.0
Miscellaneous
Included AccessoriesRemote control, 2 styluses, HDMI cable, batteries, USB cable (3 m), cable clamps
Compliant StandardsUL, cUL, VESA FDMI, FCC, RoHS, REACH, RCM
Power
Power DevicePower supply
Input VoltageAC 100-240 V (50/60 Hz)
Power Consumption Stand by0.5 Watt
Battery- AAA type
Included Qty2
Manufacturer Warranty
Service & SupportLimited warranty - 3 years ¦ Limited warranty - backlight - 3 years
