SMART UPS NAVY .
Manufacture#: SU3000RMX93
£3240 .56
£3888.67 inc VAT
Checking delivery…
Product details
UPS (rack-mountable)
AC 120 V
2.25 kW
3000 VA
Payment options available at checkout
Main features

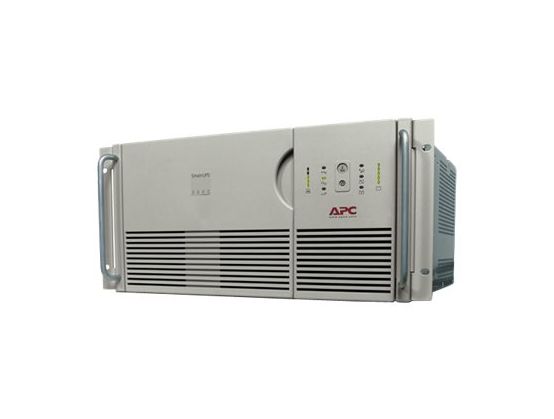

APC Smart-UPS RM 3000VA Shipboard
UPS (rack-mountable)
AC 120 V
2.25 kW
3000 VA
output connectors: 6
5U
beige
for P/N: AR2200, AR2280, AR2401, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587
Overview
APC Smart-UPS protects critical data by supplying reliable, network-grade power in either traditional tower or rack-optimized form factors. Award-winning Smart-UPS is the perfect UPS for protecting business critical servers, voice and data networks, point of sale, retail/bank back office and ATMs. Designed and manufactured by APC, Smart-UPS remains the industry standard for all network UPSs. Smart-UPS is a UPS businesses trust for their critical applications.
Product Description
APC Smart-UPS RM 3000VA Shipboard - UPS - 2.25 kW - 3000 VA
Device Type
UPS - rack-mountable
Rack Size
5U
Weight
58.6 kg
Input Voltage
AC 120 V
Output Voltage
AC 120 V ± 5%
Power Capacity
2.25 kW / 3000 VA
Input Connectors
1 x power NEMA L5-30
Output connectors
6 x power NEMA 5-15
Battery
Lead Acid
Battery Form Factor
Internal
Run Time (Up To)
5.7 min at full load
Colour
Beige
Dimensions (WxDxH)
48.3 cm x 45.1 cm x 22.2 cm
Manufacturer Warranty
2-year warranty
Designed For
P/N: AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587
General
Device Type
UPS - rack-mountable
Battery Enclosure Type
Internal
Height (Rack Units)
5U
Colour
Beige
Power Device
UPS Technology
Line interactive
Input Voltage
AC 120 V
Input Voltage Range
AC 92 - 147 V
Input Voltage Range (Adjustable)
AC 86 - 154 V
Frequency Provided
47 - 53 / 57 - 63 Hz
Frequency Required
50/60 Hz
Input Connectors
1 x power NEMA L5-30
Power Output Connectors Details
6 x power NEMA 5-15
Output Voltage
AC 120 V ± 5% - 47 - 53 / 57 - 63 Hz
Power Capacity
2.25 kW / 3000 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Surge Response Time
0 ns
Surge Energy Rating
480 Joules
Compliant Standards
CSA, UL 1778, UL 1449
Battery
Technology
Lead Acid
Run Time (Up To)
5.7 min at full load
Recharge Time
3 hours
Expansion / Connectivity
Interfaces
1 x management (RS-232) - 9 pin D-Sub (DB-9)
Expansion Slots
1 (total) / 1 (free) x SmartSlot
Miscellaneous
Cables Included
Power cable 1.8 m ¦ Serial cable - external
Rack Mounting Kit
Included
Features
Audible alarm, audible alarm, Automatic Voltage Regulation (AVR)
Compliant Standards
FCC Class A certified, CSA, UL 1449, UL 1778, FCC Part 15
Software / System Requirements
Software Included
APC PowerChute Smart-UPS Bundle
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Min Storage Temperature
-15 °C
Max Storage Temperature
45 °C
Humidity Range Operating
0 - 95%
Humidity Range Storage
0 - 95%
Sound Emission
53 dBA
Dimensions & Weight
Width
48.3 cm
Depth
45.1 cm
Height
22.2 cm
Weight
58.6 kg
Dimensions & Weight (Shipping)
Shipping Width
62.2 cm
Shipping Depth
61 cm
Shipping Height
33.7 cm
Shipping Weight
65.9 kg
Compatibility Information
Designed For
P/N: AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587
