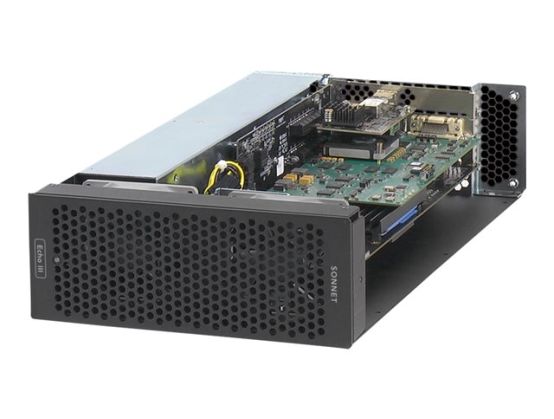

DuoModo Echo III Module
£1118.94
£1342.73 inc VAT
Checking delivery…
Product details
- System bus extender
- Thunderbolt 3 x 2
- 400 Watt
- for DuoModo Dual-Module Rackmount Enclosure
Payment options available at checkout
Main features
- Sonnet DuoModo Echo III
- System bus extender
- Thunderbolt 3 x 2
- 400 Watt
- for DuoModo Dual-Module Rackmount Enclosure
Overview
Sonnet DuoModo Echo III - system bus extender - Thunderbolt 3 x 2
Product Description
Sonnet DuoModo Echo III - system bus extender - Thunderbolt 3 x 2
Product Type
System bus extender
Docking Interface
Thunderbolt 3 x 2
Dimensions (WxDxH)
8.4 cm x 42.2 cm x 21.7 cm
Weight
2.25 kg
Power
Power supply AC 115-230 V (50 - 60 Hz) 400 Watt Power Provided
Manufacturer Warranty
2-year warranty
Designed For
DuoModo Dual-Module Rackmount Enclosure
General
Product Type
System bus extender
Width
8.4 cm
Depth
42.2 cm
Height
21.7 cm
Weight
2.25 kg
Expansion / Connectivity
Expansion Slots
1 (total) / 1 (free) x PCI Express 3.0 x16 - full-length, full-height (x8 mode) ¦ 1 (total) / 1 (free) x PCI Express 3.0 x8 - full-length, full-height (x8 mode) ¦ 1 (total) / 1 (free) x PCI Express 3.0 x8 - full-length, full-height (x4 mode)
Miscellaneous
Cables Included
1 x Thunderbolt cable - external
Included Accessories
Screws, ThunderLok 3 Thunderbolt connector retainer clip
Features
Built-in 2 cooling fans, temperature controlled fans, variable speed fans
Compliant Standards
IEC 62368-1, IEC 62368-2, RoHS III 2015/863/EU
Power
Power Device
Power supply
Voltage Required
AC 115-230 V (50 - 60 Hz)
Power Provided
400 Watt
System Requirements
OS Required
Windows 10, Linux Kernel 5.0 or later, Apple macOS 10.12.6 or later, Apple macOS Monterey
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
Compatibility Information
Designed For
Sonnet DuoModo Dual-Module Rackmount Enclosure
