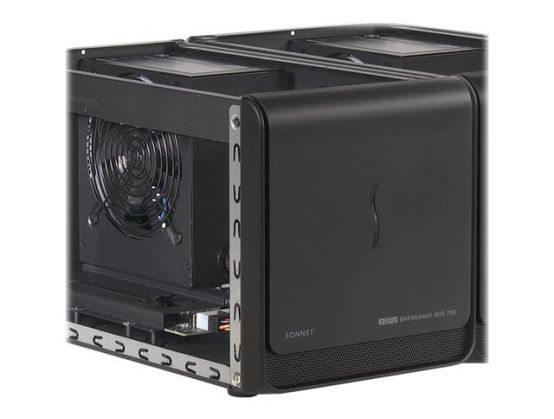

Whether you're editing, rendering, color grading, animating or creating special effects, many of the pro applications you use rely on desktop and workstation graphics (GPU) cards to do the heavy lifting in processing data. Unfortunately, many popular computers are equipped only with integrated graphics or low-power discrete GPUs that bottleneck performance when performing these tasks. Happily, there's a simple path to greater productivity - add a Sonnet external GPU (eGPU). The eGPU Breakaway Box 750 Thunderbolt 3 to GPU PCIe card expansion systems boost your eGPU-compatible computer's graphics performance by connecting a high-performance GPU card to your computer via a single cable.¦With each new generation of GPU cards, users can look forward to a step (or leap) forward in performance. Less predictable is how much power they will require to operate - better performance frequently requires increased power. For eGPU users, power consumption can be a concern. Don't limit your future card choices - choose a Sonnet eGPU Breakaway Box 750. Equipped with 750W power supplies, these Sonnet chassis easily support the highest power demands of latest GPUs and have plenty of extra power to support GPU cards from generations to come.¦eGPU Breakaway Box 750 systems are designed specifically to accommodate the most power-hungry double-width GPU cards. They support Thunderbolt-compatible cards with popular GPU chipsets - such as AMD Radeon RX series (including VEGA GPUs); and NVIDIA GeForce series and TITAN GPUs. Even the latest pro cards - AMD Radeon Pro and NVIDIA Quadro GPUs - are supported! With a GPU card installed, a Breakaway Box functions as a simple plug-in upgrade to significantly accelerate the demanding needs of your video production workflow.
- Includes two 8-pin (6+2 pin) auxiliary power connectors
- 750W power supply; supports cards requiring up to 375W of continuous power plus an additional 100W peak power
- Provides 100W of upstream power (useful for charging your notebook)
- AMD approved for the air-cooled editions of the AMD Radeon RX Vega 64, Radeon Pro WX 8200, and WX 9100
- Designed to also support overclocked NVIDIA cards with high peak power requirements
Boosts graphics performance
Connects a high-performance GPU card to your computer with Thunderbolt 3 ports.
Cuts application task times
Enables GPU acceleration to significantly improve editing, rendering, color grading, animation, and special effects performance.
750W power supply
Support the power requirements of the latest compatible GPU cards; future-proof design handles higher power requirements of cards to come.
Supports many of the latest GPU cards
Includes AMD Radeon VII, RX, RX Vega, Pro W and Pro WX models; and NVIDIA GeForce RTX series, TITAN, and Quadro models.
Multi-eGPU acceleration support
Connect two, three, or four eGPU Breakaway Boxes to slash task times on supported applications.
Supports non-GPU PCIe cards
Supports Thunderbolt-compatible full-length, full-height, single- or double-width cards - perfect for pro audio I/O and DSP cards and pro video I/O and transcoding cards.
Quietest configurable eGPU system available
Large built-in, variable-speed, temperature-controlled fan quietly and effectively cools whatever card you install.
Single-port 40Gbps Thunderbolt 3 interface
Ensures full 2750 MB/s of PCIe bandwidth is dedicated to the installed card.
Thunderbolt certified
Certified for Thunderbolt for use with Mac computers.
Mac and Windows compatible
Compatible with Mac and Windows computers with Thunderbolt 3 ports.
