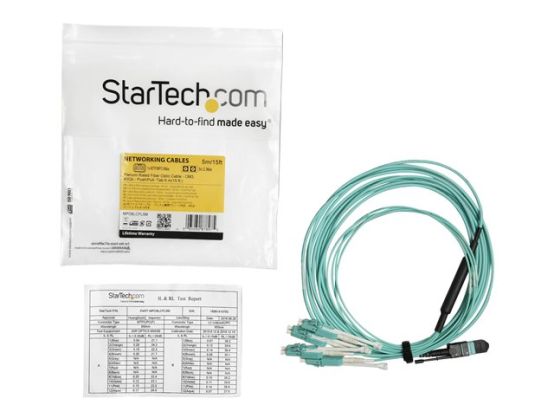

5m (15ft) MTP(F)/PC to 4x LC/PC Duplex Breakout OM3 Multimode Fiber Optic Cable, OFNP, 8F Type-A, 50/125µm LOMMF, 40G Networks, Low Insertion Loss - Fiber Patch Cord (MPO8LCPL5M).
- OM3 FIBER CABLE: MTP(F)/PC to 4x LC/PC Duplex Breakout Multimode Fiber Cable features a single 40 Gbps connection to four LC duplex connectors; Ideal for high density connections between servers, switches, QSFP+ and SFP+ transceivers
- QUALITY CONSTRUCTION: OFNP jacket emits low-smoke and fumes if combusted; 50/125µm fiber core/cladding is immune to EMI; MTP Push-Pull Tabs with Flexible Extensions facilitates convenient installation and removal
- RATINGS AND RELIABILITY: Individually tested for signal integrity; Test report included with each cable; Rated for plenum and in-wall installations; MTP/MPO and LC connectors with PC polished ends maintains low insertion loss
- COMPATIBILITY: OM3 MTP/MPO multimode cable supports 40 Gbps for high-density network applications such as SANs, data servers, and QSFP+ transceivers; Connect from a 40GBase-SR4 QSFP+ module to four LC SFP+ transceivers
- SPECS: 5m (16.4ft); Color: Aqua (OM3); 40 Gbps; MTP(F)/PC to 4x Duplex LC Breakout; 850nm or 1300nm VCSEL; Modal Bandwidth: ≥2000MHz·km at 850nm; Cable OD: 3.0mm (MTP), 2.0mm (LC); Insertion Loss: ≤0.5dB (MTP), ≤0.2dB (LC)
Efficient cable design
The MTP to LC Breakout Cable features a streamlined design that helps optimize space and manage connections effectively. The cable's breakout capability allows for easy connects and disconnects, facilitating organization of the network infrastructure.
Robust multimode specification
With a core/cladding diameter of 50 / 125 microns, this multimode fiber optic cable provides reliable transmission over short to medium distances, making it suitable for various networking tasks without compromising performance.
Safe installation for critical areas
This cable is plenum-rated, ensuring it can be safely installed in return air spaces within buildings without the risk of fire hazards. It meets strict safety standards necessary for such environments.
Versatile connectivity options
Equipped with a single MTP/MPO female connector and eight LC male connectors, this cable caters to diverse networking needs. Its design allows for connectivity to various devices effortlessly.
Environmentally responsible choice
The MTP to LC Breakout Cable complies with RoHS standards, ensuring it is manufactured without the use of hazardous substances, contributing to a greener economy.
