SY SY-MC4UBT-I Receiver - video/audio/serial/network extender - HDBaseT
Manufacture#: SY-MC4UBT-I
£1102 .89
£1323.47 inc VAT
Checking delivery…
Product details
Video/audio/serial/network extender
receiver
HDBaseT
4 ports
Payment options available at checkout
Main features
SY SY-MC4UBT-I Receiver
Video/audio/serial/network extender
receiver
HDBaseT
4 ports
up to 70 m
Overview

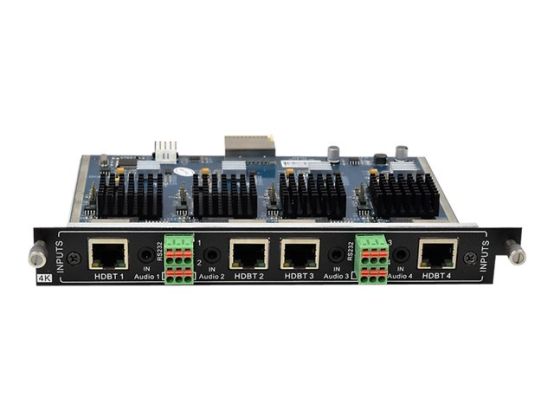

The SY-MC4UBT-I Input Card is a 4 way 4K HDBaseT input card for working with MM-xx Multi-format chassis. It has 4 RJ45 inputs whcih can be paired with the SY-HDBT-70-PT tranmitter for transmission of HDMI, RS232 up to 70m at 1080P.
Product Description
SY SY-MC4UBT-I Receiver - video/audio/serial/network extender - HDBaseT
Device Type
Video/audio/serial/network extender (receiver)
Ports Qty
4
Form Factor
Plug-in card
Data Transfer Rate
10.2 Gbps
Data Link Protocol
HDBaseT
Max Transfer Distance
70 m
General
Device Type
Video/audio/serial/network extender (receiver)
Form Factor
Plug-in card
Networking
Ports Qty
4
Connectivity Technology
Wired
Data Link Protocol
HDBaseT
Data Transfer Rate
10.2 Gbps
Max Transfer Distance
70 m
Features
4K resolution support
Compliant Standards
HDCP 1.4
Expansion / Connectivity
Interfaces
4 x HDBaseT - RJ-45 female ¦ 4 x audio - mini jack female ¦ 4 x RS-232
Environmental Parameters
Min Operating Temperature
-10 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90%
