SYNOLOGY

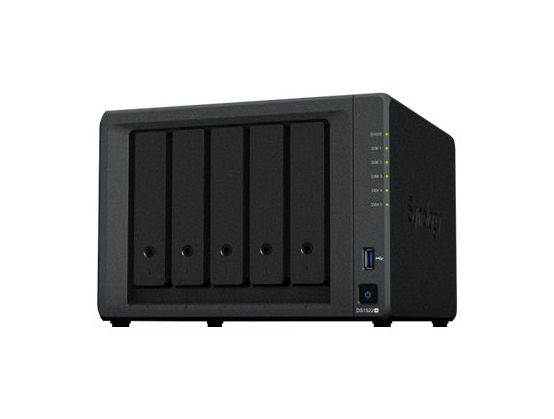

DS1522+ 5 bay NAS, 40TB 5x8T SATA HDD

Name: DS1522+ 5 bay NAS, 40TB 5x8T SATA HDD
Brand: SYNOLOGY
SKU: 1TSTOSTO-037322
Price: 2524.22 GBP
Availability: OutOfStock

SKU

1TSTOSTO-037322

Manufacture#: DS1522+/40T/5X8TB

£2103.52

£2524.22 inc VAT

Checking delivery…

Product details

NAS server
5 bays
40 TB
SATA 6Gb/s

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

Synology Disk Station DS1522+
NAS server
5 bays
40 TB
SATA 6Gb/s
HDD 8 TB x 5
RAID 0, 1, 5, 6, 10, JBOD
RAM 8 GB
Gigabit Ethernet
iSCSI support

Overview

The 5-bay Synology DiskStation DS1522+ is easy to scale and expand as your needs change. Powered by Synology DiskStation Manager (DSM), it offers a flexible all-in-one solution for data sharing, synchronization, backup, and surveillance.

Specification

Product Description Synology Disk Station DS1522+ - NAS server - 40 TB

Device Type NAS server

Host Connectivity Gigabit Ethernet

Total Storage Capacity 40 TB

Storage Capacity Details Single volume size: 108 TB

Installed Devices / Modules Qty 5 (installed) / 5 (max)

Dimensions (WxDxH) 23 cm x 22.3 cm x 16.6 cm

Weight 6.3 kg ()

Processor 1 x AMD Ryzen Embedded R1600 2.6 GHz (Dual-Core)

Storage Controller RAID SATA 6Gb/s RAID 0, 1, 5, 6, 10, JBOD

Hard Drive 5 x 8 TB SATA 6Gb/s

Networking 10Mb LAN, 100Mb LAN, GigE

IP Cameras Supported 40

Performance Sequential read: 736 MB/s ¦ Sequential write: 796 MB/s

RAM 8 GB

Power AC 100-240 V (50/60 Hz)

Storage Operating System Synology DiskStation Manager

Manufacturer Warranty 3-year warranty

General

Device Type NAS server

Host Connectivity Gigabit Ethernet

Total Storage Capacity 40 TB

Storage Capacity Details Single volume size: 108 TB

Installed Devices / Modules Qty 5 (installed) / 5 (max)

Width 23 cm

Depth 22.3 cm

Height 16.6 cm

Weight 6.3 kg ()

Built-in Devices 2 x fans

Processor / Memory

Processors Installed 1 x AMD Ryzen Embedded R1600 2.6 GHz

Number of Cores Dual-Core

Max Supported Qty 1

Max Turbo Speed 3.1 GHz

RAM 8 GB (installed) / 32 GB (supported) - DDR4

Features ECC

Storage Controller

Type RAID

Interface Type SATA 6Gb/s

RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD

Hard Drive

Type HDD - hot-swap

Capacity 5 x 8 TB

Interface Type SATA 6Gb/s

Networking

Data Link Protocol 10Mb LAN, 100Mb LAN, GigE

Network / Transport Protocol PPTP, L2TP, iSCSI, FTP, OpenVPN

Remote Management Protocol SNMP, Telnet, SSH

Network Services Compatibility Microsoft Active Directory (AD), Microsoft CIFS, FTP, Server Message Block (SMB), Apple File Protocol (AFP), Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV), Server Message Block 2.0 (SMB 2.0), Server Message Block 3.0 (SMB 3.0), Network File System v3 (NFS v3), Network File System v4 (NFS v4), Network File System v4.1 (NFS v4.1)

Performance Sequential read: 736 MB/s ¦ Sequential write: 796 MB/s

Features Firewall protection, load balancing, wake on LAN (WOL), High Availability, Access Control List (ACL) support, FTP server, surveillance station, PXE support, DNS server, cloud backup, VPN Server, ONVIF support, Dropbox support, Link Aggregation, Google Drive support, Yandex Disk support, Microsoft OneDrive support, B-tree file system (Btrfs), file station, hubiC support, OpenStack Swift-compatible, WebDAV server support, Baidu cloud support, EXT4 file system, SSD trim, iSCSI LUN clone/snapshot, RAID migration, Rsync compatible, Synology Hybrid RAID, automated failover, Alibaba Cloud OSS support, Backblaze B2 support, MegaDisk support, Tencent COS support, wake on WAN (WOW), Let's Encrypt, RADIUS Server, NFS Kerberos authentication, cloud sync, advanced snapshot technology, file and folder-level data restoration, flexible storage quota system, file self-healing, inline compression, SSD read-write cache, shared folder encryption, SMB encryption, login auto block

Encryption Algorithm SSL, TLS, AES-NI

Compliant Standards DLNA CERTIFIED

Security DVR

IP Cameras Supported 40

Compression Format H.264, H.265

Image Resolution 1280x720, 1920x1080, 2048x1536, 2591x1944, 3840x2160

Expansion / Connectivity

Expansion Bays 5 (total) / 0 (free) x hot-swap - 2.5" / 3.5"

Expansion Slots 2 (total) / 2 (free) x M.2 2280 ¦ 1 (total) / 1 (free) x PCI Express 3.0 x2 ¦ 2 (total) / 1 (free) x SO-DIMM 260-pin

Interfaces 2 x USB 3.2 Gen 1 - Type A ¦ 4 x Ethernet 1000Base-T - RJ-45 ¦ 2 x eSATA

Miscellaneous

Cables Included 2 x network cable

Features Security lock slot (cable lock sold separately), scheduled power on/off, VPN support

Security Slot Type Kensington security slot

Compliant Standards VCCI, BSMI, CCC, FCC, RoHS, KC, EAC, RCM, UKCA

Included Accessories Accessory pack

Power

Power Device External power adapter

Voltage Required AC 100-240 V (50/60 Hz)

Power Consumption Operational 52.06 Watt

Power Consumption Stand by 16.71 Watt

Power Provided 120 Watt

Software / System Requirements

Storage Operating System Synology DiskStation Manager

Software Included McAfee AntiVirus (Trial)

Manufacturer Warranty

Service & Support Limited warranty - 3 years

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 40 °C

Humidity Range Operating 5 - 95% RH

Sound Emission 22.9 dBA
