SYNOLOGY

Synology k/DS1821+_+8x_HAT5300-12T

Name: Synology k/DS1821+_+8x_HAT5300-12T
Brand: SYNOLOGY
SKU: 1TSTOHDA-009620
Price: 5389.18 GBP
Availability: OutOfStock

SKU

1TSTOHDA-009620

Manufacture#: K/DS1821+_+8X_HAT5300-12T

£4490.98

£5389.18 inc VAT

Checking delivery…

Product details

NAS server
8 bays
96 TB
SATA 6Gb/s / eSATA

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

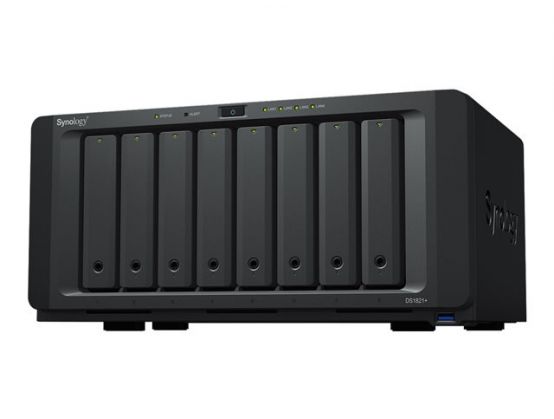

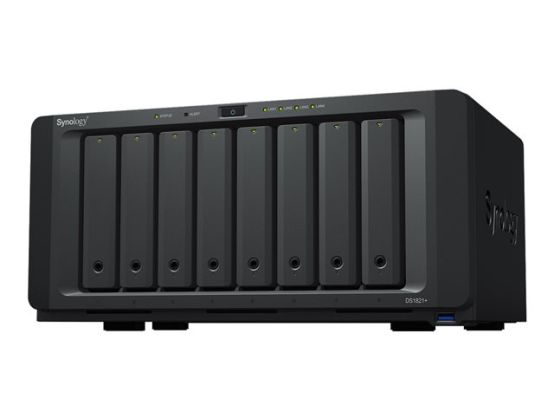

Synology Disk Station DS1821+
NAS server
8 bays
96 TB
SATA 6Gb/s / eSATA
HDD 12 TB x 8
RAID RAID 0, 1, 5, 6, 10, JBOD
RAM 4 GB
Gigabit Ethernet
iSCSI support

Overview

The 8-bay Synology DS1821+ is aimed at IT enthusiast and SMB customers looking for a powerful and scalable storage solution, its business-grade backup solutions keep users safe and protected from potential data loss, while major improvements to compute capabilities and throughput means workloads are finished faster than ever before.

Specification

Product Description Synology Disk Station DS1821+ - NAS server - 96 TB

Device Type NAS server

Host Connectivity Gigabit Ethernet

Total Storage Capacity 96 TB

Max Supported Capacity 108 TB

Installed Devices / Modules Qty 8 (installed) / 8 (max)

Dimensions (WxDxH) 34.3 cm x 24.3 cm x 16.6 cm

Weight )

Processor 1 x AMD Ryzen Embedded V1500B 2.2 GHz (Quad-Core)

Storage Controller RAID SATA 6Gb/s / eSATA RAID RAID 0, 1, 5, 6, 10, JBOD

Hard Drive 8 x 12 TB

Networking 10Mb LAN, 100Mb LAN, GigE

IP Cameras Supported 40

RAM 4 GB

Power AC 100-240 V (50/60 Hz)

Storage Operating System Synology DiskStation Manager

System Requirements Microsoft Windows 7 or later, Apple macOS 10.12 or later

Manufacturer Warranty 3-year warranty

General

Device Type NAS server

Host Connectivity Gigabit Ethernet

Total Storage Capacity 96 TB

Max Supported Capacity 108 TB

Installed Devices / Modules Qty 8 (installed) / 8 (max)

Width 34.3 cm

Depth 24.3 cm

Height 16.6 cm

Weight )

Built-in Devices Led panel

Processor / Memory

Processors Installed 1 x AMD Ryzen Embedded V1500B 2.2 GHz

Number of Cores Quad-Core

Max Supported Qty 1

RAM 4 GB (installed) / 32 GB (supported) - DDR4

Features ECC

Storage Controller

Type RAID

Interface Type SATA 6Gb/s / eSATA

RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD

Hard Drive

Type HDD - hot-swap

Capacity 8 x 12 TB

Networking

Data Link Protocol 10Mb LAN, 100Mb LAN, GigE

Network / Transport Protocol TCP/IP, PPTP, L2TP, IPSec, iSCSI, SMTP, FTP, DNS, POP3, IMAP, SMB, NFS, SFTP, HTTP, HTTPs

Remote Management Protocol SNMP, Telnet, HTTP, HTTPS, TFTP, SSH, SFTP, LDAP, RADIUS

Network Services Compatibility Microsoft Active Directory (AD), DNS, File Level Security (ACLs), Microsoft CIFS, FTP, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV), SFTP, Server Message Block 2.0 (SMB 2.0), Server Message Block 3.0 (SMB 3.0), Network File System v3 (NFS v3), Network File System v4 (NFS v4), Network File System v4.1 (NFS v4.1)

Features Firewall protection, hardware encryption, LDAP support, wake on LAN (WOL), manageable, High Availability, web server, backup server, download client, file sharing, Access Control List (ACL) support, RADIUS support, iTunes server, FTP server, e-mail server, reset button, bandwidth control, surveillance station, PXE support, DNS server, DLNA Media Server, Apple Time Machine compatible, cloud backup, VPN Server, Dropbox support, mobile users support, Link Aggregation, Google Drive support, scheduler, failover protection, Yandex Disk support, Microsoft OneDrive support, B-tree file system (Btrfs), file station, hubiC support, OpenStack Swift-compatible, Baidu cloud support, EXT4 file system, iSCSI LUN clone/snapshot, Windows ODX, MailPlus server, Amazon S3 support, Rsync compatible, Alibaba Cloud OSS support, Backblaze B2 support, MegaDisk support, Tencent COS support, wake on WAN (WOW)

Encryption Algorithm SSL, TLS, AES-NI

Compliant Standards DLNA CERTIFIED

Security DVR

IP Cameras Supported 40

Compression Format MJPEG, H.264, H.265

Image Resolution 1280x720, 1920x1080, 2048x1536, 2591x1944, 3840x2160

Expansion / Connectivity

Expansion Bays 8 (total) / 0 (free) x hot-swap - 2.5" / 3.5"

Expansion Slots 2 (total) / 1 (free) x SO-DIMM 260-pin ¦ 2 (total) / 2 (free) x M.2 2280 ¦ 1 (total) / 1 (free) x PCI Express 3.0 x8

Interfaces 4 x Ethernet 1000Base-T - RJ-45 ¦ 4 x USB 3.2 Gen 1 - Type A ¦ 2 x eSATA

Miscellaneous

Cables Included 2 x network cable

Features Security lock slot (cable lock sold separately), wake on LAN, built-in 2 cooling fans, hardware encryption, scheduled power on/off, Hybrid RAID, VPN support, built-in firewall, reset button, lockable tray

Security Slot Type Kensington security slot

Compliant Standards VCCI, BSMI, CCC, FCC, RoHS, KC, EAC, RCM

Included Accessories Accessory pack, 2 x drive tray keys

Power

Power Device Internal power supply

Voltage Required AC 100-240 V (50/60 Hz)

Power Provided 250 Watt

Software / System Requirements

Storage Operating System Synology DiskStation Manager

Software Included McAfee AntiVirus (Trial)

OS Required Microsoft Windows 7 or later, Apple macOS 10.12 or later

Manufacturer Warranty

Service & Support Limited warranty - 3 years

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 40 °C

Humidity Range Operating 5 - 95% RH
