SYNOLOGY

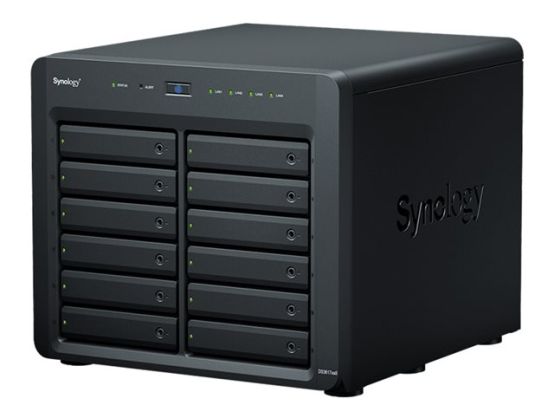

Synology Disk Station DS3617xsII - NAS server

Name: Synology Disk Station DS3617xsII - NAS server
Brand: SYNOLOGY
SKU: 1TSTOHDA-014566
Price: 2471.02 GBP
Availability: OutOfStock

SKU

1TSTOHDA-014566

Manufacture#: DS3617xsII

£2059.18

£2471.02 inc VAT

Checking delivery…

Product details

NAS server
12 bays
SATA 6Gb/s
RAID RAID 0, 1, 5, 6, 10, JBOD, RAID F1

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

Synology Disk Station DS3617xsII
NAS server
12 bays
SATA 6Gb/s
RAID RAID 0, 1, 5, 6, 10, JBOD, RAID F1
RAM 16 GB
Gigabit Ethernet
iSCSI support

Overview

Synology DiskStation DS3617xsII is a general-purpose 12-bay NAS system designed to excel in data-heavy environments as a file server, surveillance server or as virtual machine storage. Powered by Synology DiskStation Manager (DSM), DS3617xsII comes with powerful built-in business solutions.

Specification

Product Description Synology Disk Station DS3617xsII - NAS server

Device Type NAS server

Host Connectivity Gigabit Ethernet

Installed Devices / Modules Qty 0 (installed) / 12 (max)

Dimensions (WxDxH) 30 cm x 34 cm x 27 cm

Weight 9.8 kg ()

Processor 1 x Intel Xeon D-1527 2.2 GHz (Quad-Core)

Storage Controller RAID SATA 6Gb/s RAID RAID 0, 1, 5, 6, 10, JBOD, RAID F1

Networking 10Mb LAN, 100Mb LAN, 1GbE

IP Cameras Supported 75

RAM 16 GB

Power AC 100-240 V (50/60 Hz)

Storage Operating System Synology DiskStation Manager

System Requirements Microsoft Windows 7 or later, Apple MacOS X 10.12 or later

Manufacturer Warranty 5-year warranty

General

Device Type NAS server

Host Connectivity Gigabit Ethernet

Total Storage Capacity 0 GB

Installed Devices / Modules Qty 0 (installed) / 12 (max)

Width 30 cm

Depth 34 cm

Height 27 cm

Weight 9.8 kg ()

Built-in Devices Led panel

Processor / Memory

Processors Installed 1 x Intel Xeon D-1527 2.2 GHz

Number of Cores Quad-Core

Max Supported Qty 1

Max Turbo Speed 2.7 GHz

RAM 16 GB (installed) / 48 GB (supported) - DDR4

Storage Controller

Type RAID

Interface Type SATA 6Gb/s

RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID F1

Networking

Data Link Protocol 10Mb LAN, 100Mb LAN, 1GbE

Network / Transport Protocol TCP/IP, PPTP, L2TP, iSCSI, SMTP, FTP, DNS, POP3, IMAP, SMB, NFS, SFTP, HTTP, HTTPs

Remote Management Protocol SNMP, Telnet, HTTP, HTTPS, TFTP, SSH, SFTP

Network Services Compatibility Microsoft Active Directory (AD), DNS, File Level Security (ACLs), Microsoft CIFS, FTP, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV), SFTP, Server Message Block 2.0 (SMB 2.0), Server Message Block 3.0 (SMB 3.0), Network File System v3 (NFS v3), Network File System v4 (NFS v4), Network File System v4.1 (NFS v4.1)

Features Firewall protection, hardware encryption, LDAP support, wake on LAN (WOL), High Availability, backup server, download client, file sharing, event log, Access Control List (ACL) support, RADIUS support, iTunes server, FTP server, reset button, bandwidth control, surveillance station, PXE support, DNS server, DLNA Media Server, Apple Time Machine compatible, e-mail notification, cloud backup, VPN Server, Dropbox support, anti-virus protection, Link Aggregation, Photo album server, Google Drive support, Yandex Disk support, Microsoft OneDrive support, OpenStack compatible, file station, hubiC support, OpenStack Swift-compatible, WebDAV server support, Baidu cloud support, cloud station server, MailPlus server, Amazon S3 support, Rsync compatible, Alibaba Cloud OSS support, Backblaze B2 support, MegaDisk support, Tencent COS support

Encryption Algorithm SSL, TLS, AES-NI

Security DVR

IP Cameras Supported 75

Compression Format MJPEG, H.264, H.265

Image Resolution 1280x720, 1920x1080, 2048x1536, 2591x1944, 3840x2160

Expansion / Connectivity

Expansion Bays 12 (total) / 12 (free) x hot-swap - 2.5" / 3.5"

Expansion Slots 1 (total) / 1 (free) x PCI Express 3.0 x8 ¦ 4 (total) / 2 (free) x SO-DIMM 260-pin

Interfaces 2 x USB 3.2 Gen 1 - Type A ¦ 4 x Ethernet 1000Base-T - RJ-45 ¦ 1 x serial (management) - DB-9 ¦ 2 x InfiniBand

Miscellaneous

Cables Included 2 x network cable

Features Wake on LAN, lockable, built-in 2 cooling fans, scheduled power on/off, reset button

Compliant Standards VCCI, BSMI, FCC, RoHS, KC, EAC, RCM

Included Accessories Accessory pack

Power

Power Device Internal power supply

Voltage Required AC 100-240 V (50/60 Hz)

Power Provided 550 Watt

Software / System Requirements

Storage Operating System Synology DiskStation Manager

Software Included McAfee AntiVirus (Trial)

OS Required Microsoft Windows 7 or later, Apple MacOS X 10.12 or later

Manufacturer Warranty

Service & Support Limited warranty - 5 years

Environmental Parameters

Min Operating Temperature 5 °C

Max Operating Temperature 40 °C

Humidity Range Operating 5 - 95% RH
