SYNOLOGY

RS1619XS+ ST8000VN004 BUNDLE INKL 4X ST8000VN004

Name: RS1619XS+ ST8000VN004 BUNDLE INKL 4X ST8000VN004
Brand: SYNOLOGY
SKU: 1TSTOHDA-007316
Price: 2938.96 GBP
Availability: InStock

SKU

1TSTOHDA-007316

Manufacture#: RS1619XS+X32TBSTX

£2449.13

£2938.96 inc VAT

Checking delivery…

Product details

NAS server
4 bays
32 TB
rack-mountable

View full product specification

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

Synology RackStation RS1619xs+
NAS server
4 bays
32 TB
rack-mountable
SATA 6Gb/s
HDD 8 TB x 4
RAID 0, 1, 5, 6, 10, JBOD, RAID F1
RAM 8 GB
Gigabit Ethernet
iSCSI support
1U

Overview

RS1619xs+ is a high-performance and scalable 1U rackmount NAS designed with upgradable memory and M.2 SSD cache configuration to meet the needs of modern businesses that require a flexible, reliable, and efficient storage solution.

Specification

Product Description Synology RackStation RS1619xs+ - NAS server - 32 TB

Device Type NAS server

Host Connectivity Gigabit Ethernet

Enclosure Type Rack-mountable - 1U

Total Storage Capacity 32 TB

Installed Devices / Modules Qty 4 (installed) / 4 (max)

Dimensions (WxDxH) 48 cm x 51.86 cm x 4.4 cm

Processor 1 x Intel Xeon D-1527 2.2 GHz (Quad-Core)

Storage Controller RAID SATA 6Gb/s RAID 0, 1, 5, 6, 10, JBOD, RAID F1

Hard Drive 4 x 8 TB SATA 6Gb/s - Seagate

Networking 10Mb LAN, 100Mb LAN, GigE

IP Cameras Supported 75

RAM 8 GB

Power AC 120/230 V (50/60 Hz)

Power Redundancy Yes

Manufacturer Warranty 5-year warranty

General

Device Type NAS server

Host Connectivity Gigabit Ethernet

Enclosure Type Rack-mountable - 1U

Total Storage Capacity 32 TB

Installed Devices / Modules Qty 4 (installed) / 4 (max)

Width 48 cm

Depth 51.86 cm

Height 4.4 cm

Built-in Devices Led panel

Processor / Memory

Processors Installed 1 x Intel Xeon D-1527 2.2 GHz

Number of Cores Quad-Core

Max Supported Qty 1

Max Turbo Speed 2.7 GHz

RAM 8 GB (installed) / 64 GB (supported) - DDR4

Features ECC

Storage Controller

Type RAID

Interface Type SATA 6Gb/s

RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID F1

Hard Drive

Type HDD - hot-swap - 3.5"

Capacity 4 x 8 TB

Interface Type SATA 6Gb/s

Manufacturer Seagate

Networking

Data Link Protocol 10Mb LAN, 100Mb LAN, GigE

Network / Transport Protocol TCP/IP, PPTP, L2TP, iSCSI, FTP, NFS

Remote Management Protocol SNMP, Telnet, HTTPS, SSH

Network Services Compatibility Microsoft Active Directory (AD), Microsoft CIFS, Network File System (NFS), FTP, Apple File Protocol (AFP), Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV)

Features Firewall protection, hardware encryption, LDAP support, wake on LAN (WOL), IP address filtering, backup server, download client, anti-malware protection, event log, Access Control List (ACL) support, Samba support, FTP server, reset button, bandwidth control, surveillance station, PXE support, DLNA Media Server, cloud backup, VPN Server, Dropbox support, anti-virus protection, Google Drive support, Amazon Cloud Drive support, Yandex Disk support, Microsoft OneDrive support, hubiC support, OpenStack Swift-compatible, cloud station server, MailPlus server, Amazon S3 support

Encryption Algorithm SSL, TLS, AES-NI

Compliant Standards DLNA CERTIFIED

Security DVR

IP Cameras Supported 75

Compression Format MJPEG, H.264, H.265

Image Resolution 1280x720, 1920x1080, 2048x1536, 2591x1944, 3840x2160

Expansion / Connectivity

Expansion Bays 4 (total) / 0 (free) x hot-swap - 2.5" / 3.5"

Expansion Slots 1 (total) / 1 (free) x PCI Express 3.0 x8 ¦ 4 (total) / 3 (free) x DIMM 288-pin ¦ 2 (total) / 2 (free) x M.2

Interfaces 4 x Ethernet 1000Base-T - RJ-45 ¦ 2 x USB 3.0 - Type A ¦ 1 x serial (management) - DB-9

Miscellaneous

Features Wake on LAN, built-in 2 cooling fans, scheduled power on/off

Compliant Standards VCCI, BSMI, CCC, FCC, RoHS, KC, EAC, RCM

Included Accessories Accessory pack

Power

Power Device Internal power supply

Installed Qty 2

Max Supported Qty 2

Power Redundancy Yes

Power Redundancy Scheme 1+1

Voltage Required AC 120/230 V (50/60 Hz)

Power Consumption Operational 68.68 Watt

Power Provided 150 Watt

Software / System Requirements

Software Included McAfee AntiVirus (Trial)

Manufacturer Warranty

Service & Support Limited warranty - 5 years

Environmental Parameters

Min Operating Temperature 5 °C

Max Operating Temperature 35 °C

Humidity Range Operating 5 - 95%

Sound Emission 39.3 dBA

Product Accessories

SYNOLOGY

SYNOLOGY Synology HAT5300 - Hard drive - 12 TB - internal - 3.5" - SATA 6Gb/s - 7200 rpm - buffer: 256 MB - for Deep Learning NVR DVA3221, Disk Station DS1621, DS1821, RackStation RS1221, RS3621, RS4021

10+ in stock

SYNOLOGY

Synology HAT5300 - Hard drive - 12 TB - internal - 3.5" - SATA 6Gb/s - 7200 rpm - buffer: 256 MB - for Deep Learning NVR DVA3221, Disk Station DS1621, DS1821, RackStation RS1221, RS3621, RS4021

£605.05

£726.06 inc VAT

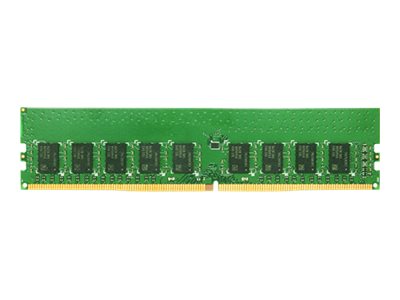

SYNOLOGY Synology - DDR4 - module - 8 GB - DIMM 288-pin / PC4-21300 - unbuffered

3 in stock

SYNOLOGY

Synology - DDR4 - module - 8 GB - DIMM 288-pin / PC4-21300 - unbuffered

£306.74

£368.09 inc VAT

Synology HAS5300 - Hard drive - 12 TB - internal - 3.5" - SAS 12Gb/s - 7200 rpm - buffer: 256 MB - for Synology SA3200D, SA3400, SA3600, High Density HD6500, RackStation RS18016xs+, RS18017XS+, Unified Controller UC3200

SYNOLOGY Synology HAS5300 - Hard drive - 12 TB - internal - 3.5" - SAS 12Gb/s - 7200 rpm - buffer: 256 MB - for Synology SA3200D, SA3400, SA3600, High Density HD6500, RackStation RS18016xs+, RS18017XS+, Unified Controller UC3200

1 in stock

SYNOLOGY

Synology HAS5300 - Hard drive - 12 TB - internal - 3.5" - SAS 12Gb/s - 7200 rpm - buffer: 256 MB - for Synology SA3200D, SA3400, SA3600, High Density HD6500, RackStation RS18016xs+, RS18017XS+, Unified Controller UC3200

£520.16

£624.19 inc VAT

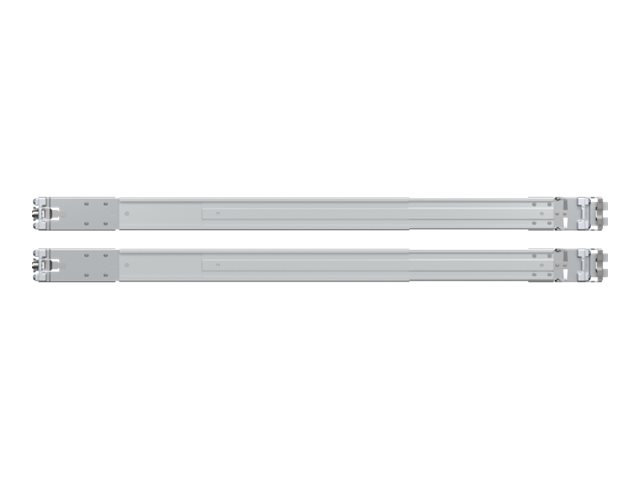

SYNOLOGY Synology - Rack rail kit - for Synology RS820, SA3200, SA3400, RackStation RS1221, RS2421, RS3621, RS4021, RS820
