SYNOLOGY

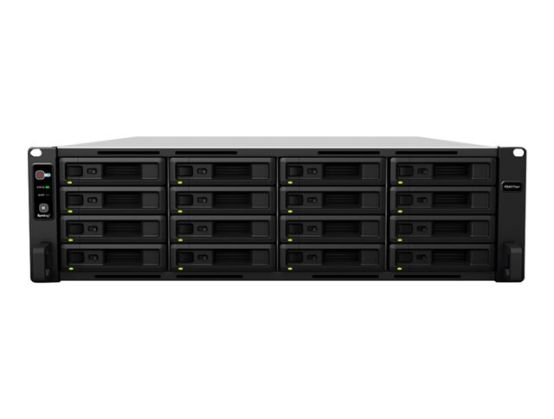

Synology RackStation RS4017XS+ - NAS server

Name: Synology RackStation RS4017XS+ - NAS server
Brand: SYNOLOGY
SKU: 1TSTOHDA-014608
Price: 5480.05 GBP
Availability: OutOfStock

SKU

1TSTOHDA-014608

Manufacture#: RS4017XS+

£4566.71

£5480.05 inc VAT

Checking delivery…

Product details

NAS server
16 bays
rack-mountable
SATA 6Gb/s

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

Synology RackStation RS4017XS+
NAS server
16 bays
rack-mountable
SATA 6Gb/s
RAID 0, 1, 5, 6, 10, JBOD
RAM 8 GB
10GBase-T
iSCSI support
3U

Overview

RS4017xs+ provides rock-solid storage solution with ultra-high performance at over 690,000 sequential read IOPS and 4,900 MB/s sequential read throughput. DDR4 ECC UDIMM and 10 GbE connectivity guarantees data accuracy and performance for mission-critical environment.

Specification

Product Description Synology RackStation RS4017XS+ - NAS server

Device Type NAS server

Host Connectivity 10GBase-T

Enclosure Type Rack-mountable - 3U

Max Supported Capacity 144 TB

Installed Devices / Modules Qty 0 (installed) / 16 (max)

Dimensions (WxDxH) 48.2 cm x 65.65 cm x 13.23 cm

Weight 17.4 kg ()

Processor 1 x Intel Xeon D-1541 2.1 GHz (8-core)

Storage Controller RAID SATA 6Gb/s RAID 0, 1, 5, 6, 10, JBOD

Networking 10Mb LAN, 100Mb LAN, 1GbE, 10GbE

IP Cameras Supported 90

RAM 8 GB

Power AC 120/230 V (50/60 Hz)

Power Redundancy Yes

System Requirements Microsoft Windows 7 or later, Apple MacOS X 10.10 or later

Manufacturer Warranty 5-year warranty

General

Device Type NAS server

Host Connectivity 10GBase-T

Enclosure Type Rack-mountable - 3U

Total Storage Capacity 0 GB

Max Supported Capacity 144 TB

Installed Devices / Modules Qty 0 (installed) / 16 (max)

Width 48.2 cm

Depth 65.65 cm

Height 13.23 cm

Weight 17.4 kg ()

Processor / Memory

Processors Installed 1 x Intel Xeon D-1541 2.1 GHz

Number of Cores 8-core

Max Supported Qty 1

Max Turbo Speed 2.7 GHz

RAM 8 GB (installed) / 64 GB (supported) - DDR4

Storage Controller

Type RAID

Interface Type SATA 6Gb/s

RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD

Networking

Data Link Protocol 10Mb LAN, 100Mb LAN, 1GbE, 10GbE

Network / Transport Protocol PPTP, L2TP, iSCSI

Remote Management Protocol SNMP, Telnet, HTTPS, SSH

Network Services Compatibility Microsoft Active Directory (AD), Microsoft CIFS, Network File System (NFS), FTP, Apple File Protocol (AFP), HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV)

Features Firewall protection, VPN support, WOL, Syslog support, ACL support, 3 fans, Link Aggregation, scheduler, failover protection, OpenStack compatible

Encryption Algorithm SSL, TLS, AES-NI

Compliant Standards DLNA CERTIFIED

Security DVR

IP Cameras Supported 90

Expansion / Connectivity

Expansion Bays 16 (total) / 16 (free) x hot-swap - 2.5" / 3.5"

Expansion Slots 4 (total) / 3 (free) x DIMM 288-pin ¦ 2 (total) / 2 (free) x PCI Express 3.0 x8

Interfaces 4 x Ethernet 1000Base-T - RJ-45 ¦ 2 x USB 3.0 ¦ 2 x Ethernet 10Gb - RJ-45 ¦ 1 x serial - DB-9 ¦ 2 x InfiniBand

Miscellaneous

Features Citrix Ready, VMware Ready

Compliant Standards FCC Class A certified, RoHS, BSMI Class A

Power

Power Device Internal power supply

Installed Qty 2

Max Supported Qty 2

Power Redundancy Yes

Power Redundancy Scheme 1+1

Voltage Required AC 120/230 V (50/60 Hz)

Power Consumption Operational 136.4 Watt

Software / System Requirements

OS Required Microsoft Windows 7 or later, Apple MacOS X 10.10 or later

Manufacturer Warranty

Service & Support Limited warranty - 5 years

Environmental Parameters

Min Operating Temperature 5 °C

Max Operating Temperature 35 °C

Humidity Range Operating 5 - 95%

Sound Emission 44.7 dBA
