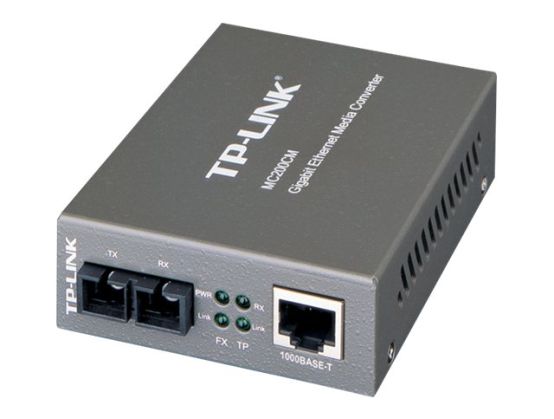

TP-Link MC200CM RJ45 to multi-mode SC fiber Converter
Checking delivery…
Product details
- Fibre media converter
- 1GbE
- 1000Base-SX, 1000Base-T
- RJ-45 / SC multi-mode
Payment options available at checkout
Main features
- TP-Link MC200CM V5
- Fibre media converter
- 1GbE
- 1000Base-SX, 1000Base-T
- RJ-45 / SC multi-mode
- up to 550 m
- 850 nm
- for P/N: TL-MC1400, TL-SG3210XHP-M2 V2.6, TL-SG3452XP V1
Overview
TP-Link MC200CM V5 - fibre media converter - 1GbE
Product Description
TP-Link MC200CM V5 - fibre media converter - 1GbE
Device Type
Fibre media converter - RJ-45 / SC multi-mode
Form Factor
External
Cabling Type
1000Base-SX, 1000Base-T
Data Transfer Rate
1 Gbps
Optical Wave Length
850 nm
Data Link Protocol
1GbE
Max Transfer Distance
550 m
Dimensions (WxDxH)
9.45 cm x 7.3 cm x 2.7 cm
Designed For
P/N: TL-MC1400, TL-SG3210XHP-M2 V2.6, TL-SG3452XP V1
General
Device Type
Fibre media converter
Form Factor
External
Networking
Connectivity Technology
Wired
Cabling Type
1000Base-SX, 1000Base-T
Data Link Protocol
1GbE
Data Transfer Rate
1 Gbps
Optical Wave Length
850 nm
Max Transfer Distance
550 m
Status Indicators
Power, link/activity
Features
Metal housing, auto-negotiation, auto-uplink (auto MDI/MDI-X)
Compliant Standards
IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Expansion / Connectivity
Interfaces
1 x Ethernet 1000Base-T - RJ-45 female ¦ 1 x Ethernet 1000Base-SX - SC multi-mode female x 2
Miscellaneous
Compliant Standards
FCC, RoHS
Power
Power Device
External power adapter
Dimensions & Weight
Width
9.45 cm
Depth
7.3 cm
Height
2.7 cm
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90%
Compatibility Information
Designed For
P/N: TL-MC1400, TL-SG3210XHP-M2 V2.6, TL-SG3452XP V1
