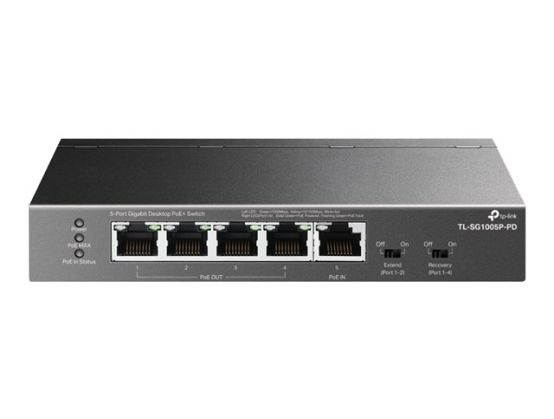

TP-Link TL-SG1005P-PD V1 - Switch - unmanaged - 4 x 10/100/1000 (PoE+) + 1 x 10/100/1000 (PoE++) - desktop, wall-mountable - PoE++ (66 W)
Manufacture#: TL-SG1005P-PD
Checking delivery…
Product details
Switch
unmanaged
4 x 10/100/1000 (PoE+) + 1 x 10/100/1000 (PoE++)
desktop, wall-mountable
Payment options available at checkout
Main features
TP-Link TL-SG1005P-PD V1
Switch
unmanaged
4 x 10/100/1000 (PoE+) + 1 x 10/100/1000 (PoE++)
desktop, wall-mountable
PoE++ (66 W)
Overview
TP-Link TL-SG1005P-PD V1 - switch - 5 ports - unmanaged
Product Description
TP-Link TL-SG1005P-PD V1 - switch - 5 ports - unmanaged
Device Type
Switch - 5 ports - unmanaged
Subtype
Gigabit Ethernet
Ports
4 x 10/100/1000 (PoE+) + 1 x 10/100/1000 (PoE++)
Power Over Ethernet (PoE)
PoE++
PoE Budget
66 W
Performance
Switching capacity: 10 Gbps ¦ Forwarding rate: 7.44 Mbps
MAC Address Table Size
2K entries
Routing Protocol
IGMP
Features
250 m Long Reach, PoE Auto Recovery, metal housing, fanless, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, flow control, IGMP snooping, QoS
Compliant Standards
IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
Dimensions (WxDxH)
15.8 cm x 10.1 cm x 2.5 cm
General
Device Type
Switch - 5 ports - unmanaged
Enclosure Type
Desktop, wall-mountable
Subtype
Gigabit Ethernet
Ports
4 x 10/100/1000 (PoE+) + 1 x 10/100/1000 (PoE++)
Power Over Ethernet (PoE)
PoE++
PoE Budget
66 W
Performance
Switching capacity: 10 Gbps ¦ Forwarding rate: 7.44 Mbps
MAC Address Table Size
2K entries
Routing Protocol
IGMP
Features
250 m Long Reach, PoE Auto Recovery, metal housing, fanless, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, flow control, IGMP snooping, QoS
Compliant Standards
IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
Status Indicators
Power, link/activity, PoE
Expansion / Connectivity
Interfaces
1 x 1000Base-T RJ-45 PoE++ ¦ 4 x 1000Base-T RJ-45 PoE+
Power
Power Device
Power injector (not included)
Miscellaneous
Compliant Standards
Plug and Play, FCC, RoHS
Dimensions & Weight
Width
15.8 cm
Depth
10.1 cm
Height
2.5 cm
Environmental Parameters
Min Operating Temperature
-30 °C
Max Operating Temperature
70 °C
Humidity Range Operating
10 - 90% RH (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 90% RH (non-condensing)
