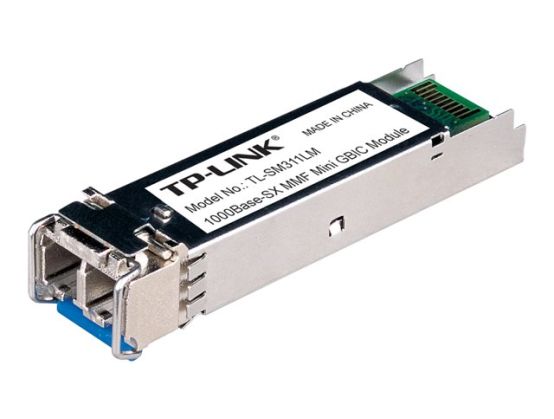

TP-Link TL-SM311LM V4 - SFP (mini-GBIC) transceiver module - 1GbE - 1000Base-SX - LC/UPC multi-mode - up to 550 m - 850 nm
Checking delivery…
Product details
SFP (mini-GBIC) transceiver module
1GbE
1000Base-SX
LC multi-mode
Payment options available at checkout
Main features
TP-Link TL-SM311LM
SFP (mini-GBIC) transceiver module
1GbE
1000Base-SX
LC multi-mode
up to 550 m
850 nm
for P/N: TL-SG3452XP V1
Overview
The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance, attached to the managed/web smart switches. They can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
Product Description
TP-Link TL-SM311LM - SFP (mini-GBIC) transceiver module - 1GbE
Device Type
SFP (mini-GBIC) transceiver module - LC multi-mode
Form Factor
Plug-in module
Cabling Type
1000Base-SX
Data Transfer Rate
1 Gbps
Optical Wave Length
850 nm
Data Link Protocol
1GbE
Max Transfer Distance
550 m
Designed For
P/N: TL-SG3452XP V1
General
Device Type
SFP (mini-GBIC) transceiver module
Form Factor
Plug-in module
Networking
Connectivity Technology
Wired
Cabling Type
1000Base-SX
Data Link Protocol
1GbE
Data Transfer Rate
1 Gbps
Optical Wave Length
850 nm
Max Transfer Distance
550 m
Status Indicators
Status
Features
Full duplex capability
Compliant Standards
IEEE 802.3z
Expansion / Connectivity
Interfaces
1 x Ethernet 1000Base-SX - LC multi-mode x 2
Compatible Slots
1 x SFP (mini-GBIC)
Miscellaneous
Compliant Standards
Plug and Play, FCC
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
70 °C
Humidity Range Operating
10 - 90%
Compatibility Information
Designed For
P/N: TL-SG3452XP V1
