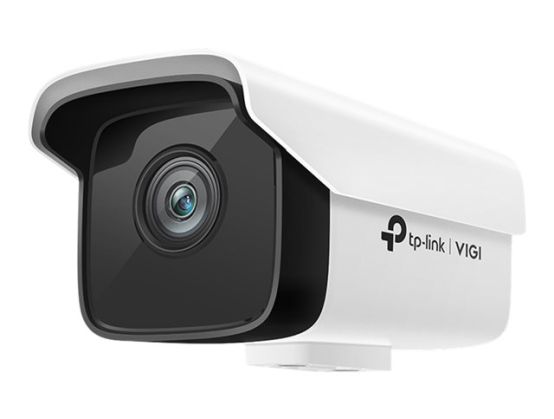

TP-Link VIGI C300 Series C300HP-4 - V1 - network surveillance camera - outdoor - dustproof / weatherproof - colour (Day&Night) - 3 MP - 2304 x 1296 - 2304p - M12 mount - fixed focal - LAN 10/100 - H.264, H.265, H.265+, H.264+ - DC 12 V / PoE
Manufacture#: VIGIC300HP-4
Checking delivery…
Product details
- V1
- network surveillance camera
- outdoor
- dustproof / weatherproof
Payment options available at checkout
Main features
- TP-Link VIGI C300 Series C300HP-4
- V1
- network surveillance camera
- outdoor
- dustproof / weatherproof
- colour (Day&Night)
- 3 MP
- 2304 x 1296
- 2304p
- M12 mount
- fixed focal
- wired
- LAN 10/100
- H.264, H.265, H.265+, H.264+
- DC 12 V / PoE
Overview
TP-Link VIGI C300 Series C300HP-4 - V1 - network surveillance camera
Product Description
TP-Link VIGI C300 Series C300HP-4 - V1 - network surveillance camera
Device Type
Network surveillance camera - fixed - outdoor - dustproof / weatherproof
Dimensions (WxDxH)
16.49 cm x 8.74 cm x 8.34 cm
Weight
283.5 g
Connectivity Technology
Wired
Camera
Colour - Day&Night
Max Resolution
2304 x 1296
Frame Rate (max)
30 frames per second
Motion Detection
Yes
Video Modes
2304p
Optical Sensor Type
CMOS - 1/2.7" - 3 MP
Minimum Illumination
0.1 lux - colour - F2.4 ¦ 0 lux - colour - F2.4 - infrared LEDs on
Focal Length Control
Fixed focal
Focal Length
4 mm
Lens Mounting
M12 mount
Focus Adjustment
Focus free
Lens Iris
F/2.4
Interfaces
Ethernet 10Base-T/100Base-TX
Voltage
DC 12 V / PoE
Features
Manual white balance, sharpness control, saturation control, brightness control, contrast control, image mirror, Wide Dynamic Range (WDR), ONVIF support, infrared cut filter, Privacy Mask Function, Camera Tampering Detection, Smart IR, intrusion detection, exposure control, plastic housing, digest authentication, Line Crossing Detection, 3D digital noise reduction (DNR), night vision, HTTPs encryption, Smart Detection
Environmental Parameters (operating)
-30 °C - 60 °C
General
Device Type
Network surveillance camera
Connectivity Technology
Wired
Width
16.49 cm
Depth
8.74 cm
Height
8.34 cm
Weight
283.5 g
Camera
Type
Colour - Day&Night - fixed - outdoor - dustproof / weatherproof
Digital Video Format
H.264, H.265, H.265+, H.264+
Max Digital Video Resolution
2304 x 1296
Motion Detection
Yes
Video Modes
2304p
Minimum Illumination
0.1 lux - colour - F2.4 ¦ 0 lux - colour - F2.4 - infrared LEDs on
Infrared LEDs
Yes
Infrared Distance
30 m
Video Capture
2304 x 1296 @ 30 fps
Features
Manual white balance, sharpness control, saturation control, brightness control, contrast control, image mirror, Wide Dynamic Range (WDR), ONVIF support, infrared cut filter, Privacy Mask Function, Camera Tampering Detection, Smart IR, intrusion detection, exposure control, plastic housing, digest authentication, Line Crossing Detection, 3D digital noise reduction (DNR), night vision, HTTPs encryption, Smart Detection
Image Sensor
Type
3 MP CMOS 1/2.7"
Lens Construction
Type
M12 mount - fixed focal
Focal Length
4 mm
Lens Iris
F/2.4
Focus Adjustment
Focus free
Horizontal Field of View (degree)
92
Vertical Field of View (degree)
48
Diagonal Field of View (degree)
114
Interfaces
Network Interface
Ethernet 10Base-T/100Base-TX
Network Protocols
DHCP, DNS, HTTP, NTP, TCP/IP, UDP/IP, ICMP, RTSP, HTTPS, UPnP, TLS, SSL
Expansion / Connectivity
Ports
LAN - RJ-45
Miscellaneous
Compliant Standards
VCCI, BSMI, FCC, RoHS, IP67, RCM, IEEE 802.3af, IEEE 802.3at
Power
Power Requirements
DC 12 V / PoE
Environmental Parameters
Min Operating Temperature
-30 °C
Max Operating Temperature
60 °C
