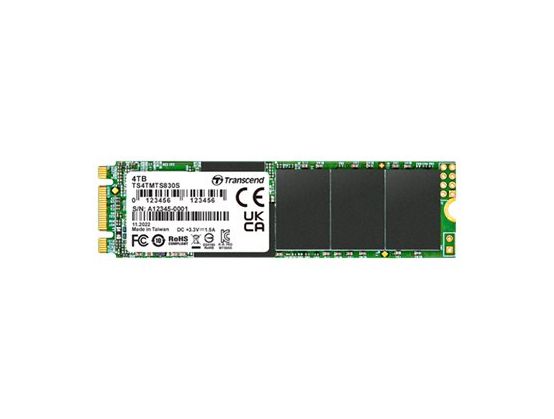

4TB M.2 2280 SSD SATA3 B+M KEY
Manufacture#: TS4TMTS830S
Checking delivery…
Product details
SSD
4 TB
internal
M.2 2242/2280
Payment options available at checkout
Main features
Transcend 830S
SSD
4 TB
internal
M.2 2242/2280
SATA 6Gb/s
integrated heatsink
Overview
Transcend's ultra-compact SATA III 6 Gb/s M.2 SSD 830S addresses the high-performance needs and strict size limitations of small form factor devices, best suited for Ultrabooks and thin, light notebooks. Boasting high-quality flash chips, DDR3 DRAM cache, and enhanced firmware algorithms, Transcend's M.2 SSD 830S delivers optimal reliability.
Product Description
Transcend 830S - SSD - 4 TB - SATA 6Gb/s
Type
Solid state drive - internal
Capacity
4 TB
Integrated Heatsink
Yes
Form Factor
M.2 2242/2280
Interface
SATA 6Gb/s
Features
3D NAND Technology, TRIM support, Native Command Queuing (NCQ), DDR3 DRAM Cache, Advanced Garbage Collection, DevSleep mode, RAID Engine, LDPC error correction, S.M.A.R.T.
Dimensions (WxDxH)
22 mm x 80 mm x 3.58 mm
Weight
9 g
Manufacturer Warranty
5-year warranty
General
Device Type
Solid state drive - internal
Capacity
4 TB
Integrated Heatsink
Yes
Form Factor
M.2 2242/2280
Interface
SATA 6Gb/s
Features
3D NAND Technology, TRIM support, Native Command Queuing (NCQ), DDR3 DRAM Cache, Advanced Garbage Collection, DevSleep mode, RAID Engine, LDPC error correction, S.M.A.R.T.
Width
22 mm
Depth
80 mm
Height
3.58 mm
Weight
9 g
Performance
Internal Data Rate
560 MBps (read) / 520 MBps (write)
4KB Random Read
90000 IOPS
4KB Random Write
85000 IOPS
Reliability
MTBF
2,000,000 hours
Expansion & Connectivity
Interfaces
1 x SATA 6 Gb/s
Compatible Bay
M.2 2242/2280
Software & System Requirements
OS Required
Microsoft Windows 7 or later, Linux Kernel 2.6.31 or later
Miscellaneous
Compliant Standards
FCC, BSMI, KC, RCM, UKCA, RoHS
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
70 °C
