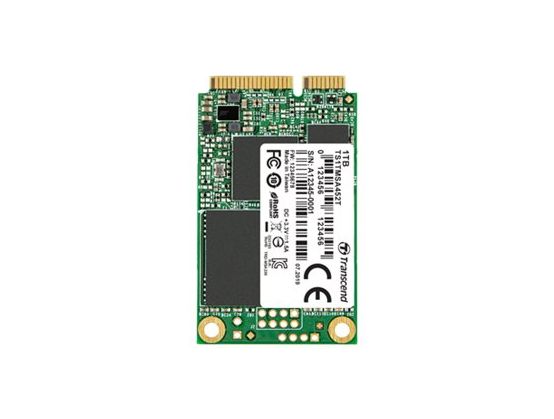

Transcend MSA452T-I - SSD - 512 GB - internal - mSATA - SATA 6Gb/s
Manufacture#: TS512GMSA452T-I
Checking delivery…
Product details
SSD
512 GB
internal
mSATA
Payment options available at checkout
Main features
Transcend MSA452T-I
SSD
512 GB
internal
mSATA
SATA 6Gb/s
Overview
Supporting the Serial ATA interface and built around a powerful controller, Transcend's SATA III 6 Gb/s MSA452T mSATA SSD delivers blazing-fast performance, long-term reliability, and high cost-effectiveness. Featuring DRAM cache for fast access and state-of-the-art 96-layer 3D NAND flash, the MSA452T guarantees reliability in mission-critical applications. The compact mSATA form factor is just one-eighth the size of a standard 2.5" SSD, making it perfect for use in space-constricted portable devices such as Ultrabooks, tablet PCs, and slim servers.
Product Description
Transcend MSA452T-I - SSD - 512 GB - SATA 6Gb/s
Type
Solid state drive - internal
Capacity
512 GB
NAND Flash Memory Type
3D triple-level cell (TLC)
Form Factor
mSATA
Interface
SATA 6Gb/s
Data Transfer Rate
600 MBps
Features
Advanced Garbage Collection, Error Correction Code (ECC), DRAM cache, DevSleep mode, Advanced Global Wear Leveling, Power Saving Mode, Block management, Security Command support, Device Sleep support, 3K P/E cycles (Programme/Erase cycles), S.M.A.R.T., JEDEC MO-300
Dimensions (WxDxH)
29.85 mm x 50.8 mm x 4.85 mm
Weight
8 g
Manufacturer Warranty
3-year warranty
General
Device Type
Solid state drive - internal
Capacity
512 GB
NAND Flash Memory Type
3D triple-level cell (TLC)
Form Factor
mSATA
Interface
SATA 6Gb/s
Features
Advanced Garbage Collection, Error Correction Code (ECC), DRAM cache, DevSleep mode, Advanced Global Wear Leveling, Power Saving Mode, Block management, Security Command support, Device Sleep support, 3K P/E cycles (Programme/Erase cycles), S.M.A.R.T., JEDEC MO-300
Width
29.85 mm
Depth
50.8 mm
Height
4.85 mm
Weight
8 g
Performance
Drive Writes Per Day (DWPD)
1.61
SSD Endurance
1760 TB
Drive Transfer Rate
600 MBps (external)
Internal Data Rate
560 MBps (read) / 520 MBps (write)
Maximum 4KB Random Write
85000 IOPS
Maximum 4KB Random Read
95000 IOPS
Reliability
MTBF
3,000,000 hours
Expansion & Connectivity
Interfaces
1 x SATA 6 Gb/s - 52 pin mini-SATA
Compatible Bay
mSATA
Power
Power Consumption
2.4 Watt (active) ¦ 0.4 Watt (sleep)
Miscellaneous
Compliant Standards
BSMI, FCC, RoHS2
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
-40 °C
Max Operating Temperature
85 °C
Min Storage Temperature
-40 °C
Max Storage Temperature
85 °C
Humidity Range Operating
5 - 95%
Shock Tolerance (operating)
1500 g @ 0.5 ms
Vibration Tolerance (non-operating)
20 g @ 7-2000 Hz
