500GB M.2 2280 PCIE GEN4X4 NVME
Manufacture#: TS500GMTE245S
Checking delivery…
Product details
SSD
500 GB
internal
M.2 2280 (single-sided)
Payment options available at checkout
Main features

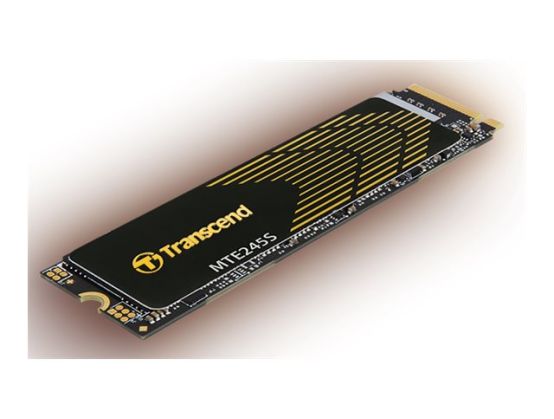

Transcend MTE245S
SSD
500 GB
internal
M.2 2280 (single-sided)
PCIe 4.0 x4 (NVMe)
integrated heatsink
Overview
Exhibiting more than just ultra-fast speed, Transcend's PCIe SSD 245S delivers unbridled performance, low latency, and high stability for advanced video editors, gamers, and software engineers. Built with the PCI Express Gen 4 x4 interface, 3D NAND flash, and a multi-channel controller, Transcend's PCIe SSD 245S means power in the palm of your hand.
Product Description
Transcend MTE245S - SSD - 500 GB - PCIe 4.0 x4 (NVMe)
Type
Solid state drive - internal
Capacity
500 GB
Integrated Heatsink
Yes
Form Factor
M.2 2280 (single-sided)
Interface
PCIe 4.0 x4 (NVMe)
Features
3D NAND Technology, low latency, RAID Engine, ECC Recovery LDPC, Advanced Garbage Collection, NVM Express (NVMe) 1.4, multi-channel controller, Dynamic thermal throttling, S.M.A.R.T.
Dimensions (WxDxH)
22 mm x 80 mm x 2.42 mm
Weight
9 g
Manufacturer Warranty
5-year warranty
General
Device Type
Solid state drive - internal
Capacity
500 GB
Integrated Heatsink
Yes
Form Factor
M.2 2280 (single-sided)
Interface
PCIe 4.0 x4 (NVMe)
Features
3D NAND Technology, low latency, RAID Engine, ECC Recovery LDPC, Advanced Garbage Collection, NVM Express (NVMe) 1.4, multi-channel controller, Dynamic thermal throttling, S.M.A.R.T.
Width
22 mm
Depth
80 mm
Height
2.42 mm
Weight
9 g
Performance
Drive Writes Per Day (DWPD)
0.33
SSD Endurance
300 TB
Internal Data Rate
4800 MBps (read) / 4000 MBps (write)
4KB Random Read
300000 IOPS
4KB Random Write
600000 IOPS
Reliability
MTBF
2,000,000 hours
Expansion & Connectivity
Interfaces
1 x PCI Express 4.0 x4 (NVMe) - M.2 Card
Compatible Bay
M.2 2280 (single-sided)
Software & System Requirements
Software Included
Transcend SSD Scope
OS Required
Linux Kernel 2.6.31 or later, Microsoft Windows 7 or later
Miscellaneous
Compliant Standards
BSMI, FCC, KC, RCM, UKCA
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
70 °C
