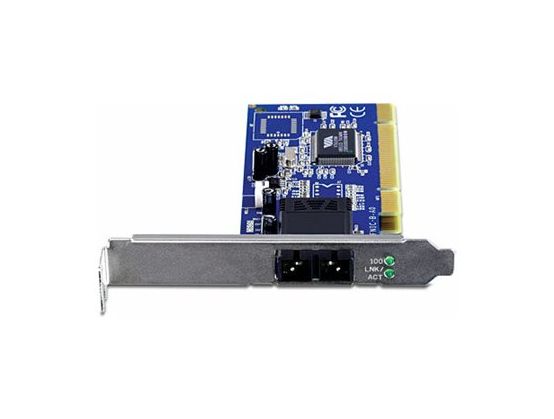

The 100Base Multi-Mode SC Fiber-to-PCI Adapter (model TE100-PCIFC) provides a reliable high-performance connection from a PC or server to a multi-mode SC-type fiber connector for distances of up to 2 kilometers (1.2 miles). Full-duplex mode supports data transfer speeds of up to 200 Mbps. Supports IEEE 802.3x Flow Control and 802.1Q VLAN. Optimize power consumption with advanced Configuration Power Management Interface (ACPI 1.0) technology.
1 x 100Base-FX SC-type multi-mode fiber port
PCI 2.2 specification compliant
Incorporates Advanced Configuration Power Management Interface (ACPI 1.0)
Supports PC99, PC2001 and Net PC hardware system designer guide
Separates 2Kbyte FIFO for receiver and transmitter controllers
Supports 802.3x full-duplex flow control and multiple pause frame
System RequirementsNovell NetWare 3.12, Novell NetWare 3.11, SCO Unix 5.0x, Novell NetWare 4.0 or later, UnixWare 7 or later, Microsoft Windows XP, Caldera OpenUnix 8, FreeBSD 4.2, Microsoft Windows 98 Second Edition / Windows ME, FreeBSD 3.2, Microsoft Windows XP 64-bit Edition, Linux 2.2.x, Novell NetWare 5.0 or later, Novell NetWare 6 or later, FreeBSD 4.0, Microsoft Windows Server 2003, Linux Kernel 2.4 or later, Linux Kernel 2.6.x or later, FreeBSD 4.11, FreeBSD 5.x or later, Microsoft Windows Server 2003 x64 Edition, Microsoft Windows Vista (32/64 bits)
TAA CompliantYes
Manufacturer Warranty5-year warranty
Extended Specification
General
Device TypeNetwork adapter
Form FactorPlug-in card
Interface (Bus) TypePCI
PCI Specification RevisionPCI 2.2
Networking
Ports10/100 Ethernet
Connectivity TechnologyWired
Cabling TypeEthernet 100Base-FX
Data Link ProtocolFast Ethernet
Data Transfer Rate100 Mbps
Max Transfer Distance2 km
Optical Wave Length1310 nm
Status IndicatorsLink OK, link/activity
FeaturesFlow control, full duplex capability, VLAN support
Compliant StandardsIEEE 802.1Q, IEEE 802.3x
Expansion / Connectivity
Interfaces1 x 100Base-FX - SC multi-mode - x 2
Compatible Slots1 x PCI
Miscellaneous
Compliant StandardsACPI, PC 99, FCC, RoHS, PC 2001
TAA CompliantYes
Software / System Requirements
Software IncludedDrivers & Utilities
OS RequiredNovell NetWare 3.12, Novell NetWare 3.11, SCO Unix 5.0x, Novell NetWare 4.0 or later, UnixWare 7 or later, Microsoft Windows XP, Caldera OpenUnix 8, FreeBSD 4.2, Microsoft Windows 98 Second Edition / Windows ME, FreeBSD 3.2, Microsoft Windows XP 64-bit Edition, Linux 2.2.x, Novell NetWare 5.0 or later, Novell NetWare 6 or later, FreeBSD 4.0, Microsoft Windows Server 2003, Linux Kernel 2.4 or later, Linux Kernel 2.6.x or later, FreeBSD 4.11, FreeBSD 5.x or later, Microsoft Windows Server 2003 x64 Edition, Microsoft Windows Vista (32/64 bits)
