8X10/100MBPS SWITCH IN
Checking delivery…
Product details
Switch
8 x 10/100
desktop
Payment options available at checkout
Main features

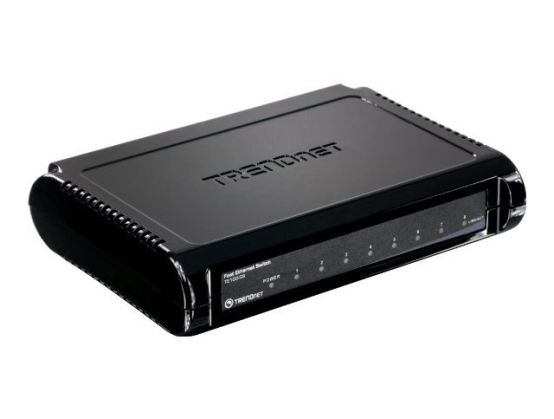

TRENDnet TE100 S8
Switch
8 x 10/100
desktop
Overview
TE100-S8 is an Auto-MDIX switch designed specifically to boost network performance by eliminating network congestions and unnecessary network traffics. Each port on the Switch provides dedicated bandwidth and can negotiate between 10/100Mbps network speeds and half/full duplex modes. Plug-N-Play provides cost-effective and high performance solutions.
Product Description
TRENDnet TE100 S8 - switch - 8 ports
Device Type
Switch - 8 ports
Subtype
Fast Ethernet
Ports
8 x 10/100
Performance
Switching fabric bandwidth: 1.6 Gbps
MAC Address Table Size
1K entries
Features
Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, GREENnet technology
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az
Power
AC 120/230 V (50/60 Hz)
Dimensions (WxDxH)
14 cm x 7.5 cm x 2.8 cm
Weight
126 g
Manufacturer Warranty
3-year warranty
General
Device Type
Switch - 8 ports
Enclosure Type
Desktop
Subtype
Fast Ethernet
Ports
8 x 10/100
Performance
Switching fabric bandwidth: 1.6 Gbps
MAC Address Table Size
1K entries
Features
Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, GREENnet technology
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az
RAM
56 KB
Expansion / Connectivity
Interfaces
8 x 100Base-TX RJ-45
Power
Power Device
External power adapter
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
1.4 Watt
Miscellaneous
Compliant Standards
Plug and Play, FCC
Dimensions & Weight
Width
14 cm
Depth
7.5 cm
Height
2.8 cm
Weight
126 g
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
0 - 90% (non-condensing)
