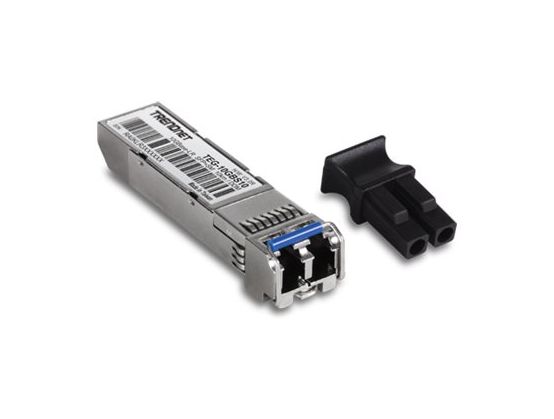

TRENDnet TEG 10GBS10 - SFP+ transceiver module - 10GbE - TAA Compliant
Manufacture#: TEG-10GBS10
Checking delivery…
Product details
SFP+ transceiver module
10GbE
10GBase-LR
LC single-mode
Payment options available at checkout
Main features
TRENDnet TEG 10GBS10
SFP+ transceiver module
10GbE
10GBase-LR
LC single-mode
up to 10 km
1310 nm
TAA Compliant
Overview
TRENDnet's SFP+ Single Mode LC Modules are compatible with standard SFP+ slots found on network switches and fiber converters. Each single mode 10G SFP+ transceiver is equipped with a duplex LC fiber connection interface, and supports high-speed data rates up to 10.31 Gbps. All TRENDnet 10G SFP+ fiber modules support connections for reliable, long-distance network applications.
Hot-pluggable SFP+ transceiver
SFP+ MSA compliant
Supported throughput: up to 10.5 Gbps
Single mode fiber for distances up to 10 km
1310 nm wavelength
Duplex LC connector
Digital Diagnostics Monitoring (DDM) support
Single 3.3 V power supply
Product Description
TRENDnet TEG 10GBS10 - SFP+ transceiver module - 10GbE - TAA Compliant
Device Type
SFP+ transceiver module - LC single-mode
Form Factor
Plug-in module
Cabling Type
10GBase-LR
Data Transfer Rate
10.5 Gbps
Optical Wave Length
1310 nm
Data Link Protocol
10GbE
Max Transfer Distance
10 km
Dimensions (WxDxH)
1.48 cm x 5.65 cm x 1.185 cm
Weight
22 g
TAA Compliant
Yes
Manufacturer Warranty
Limited lifetime warranty
General
Device Type
SFP+ transceiver module
Form Factor
Plug-in module
Networking
Connectivity Technology
Wired
Cabling Type
10GBase-LR
Data Link Protocol
10GbE
Fibre Channel
FC-PI-4
Data Transfer Rate
10.5 Gbps
Optical Wave Length
1310 nm
Max Transfer Distance
10 km
Features
Hot swap module replacement, Digital Diagnostics Monitoring Interface (DDMI), metal housing
Compliant Standards
IEEE 802.3ae
Expansion / Connectivity
Interfaces
1 x Ethernet 10GBase-LR - LC single-mode female x 2
Miscellaneous
Compliant Standards
FCC, MSA SFF-8472, MSA SFF-8431, MSA SFF-8432
TAA Compliant
Yes
Power
Power Consumption Operational
522 mW
Dimensions & Weight
Width
1.48 cm
Depth
5.65 cm
Height
1.185 cm
Weight
22 g
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
70 °C
Humidity Range Operating
0 - 95% (non-condensing)
