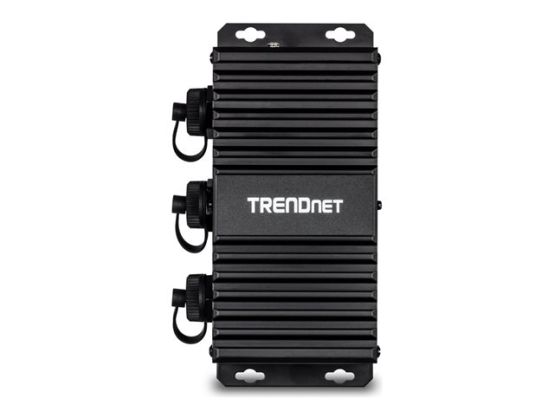

TRENDnet TI-EU120 - network/power extender - 10Mb LAN, 100Mb LAN, 1GbE - TAA Compliant
Checking delivery…
Product details
Network/power extender
1GbE
10Base-T, 100Base-TX, 1000Base-T
TAA Compliant
Payment options available at checkout
Main features
TRENDnet TI-EU120
Network/power extender
1GbE
10Base-T, 100Base-TX, 1000Base-T
TAA Compliant
Overview
TRENDnet's 2-Port Industrial Outdoor Gigabit UPoE extender, model TI-EU120, takes a single UPoE connection and extends it an additional 100 meters (328 feet) for up to two PoE+ devices. It auto-detects a PoE (15.4 W), PoE+ (30 W), or UPoE (60 W) signal and extends it for a total distance of up to 200 meters (656 feet) from the PoE source. Daisy chain up to 4 units for a total PoE network extension of up to 500 meters (1640 feet). This outdoor UPoE extender features a single UPoE input port and two PoE+ output ports encased in an IP67 weather rated housing. Built-in voltage booster guarantees stable voltage output for your high powered PoE devices.
Product Description
TRENDnet TI-EU120 - network/power extender - 10Mb LAN, 100Mb LAN, 1GbE - TAA Compliant
Device Type
Network/power extender
Form Factor
Wall mountable
Cabling Type
10Base-T, 100Base-TX, 1000Base-T
Data Transfer Rate
2 Gbps
Data Link Protocol
10Mb LAN, 100Mb LAN, 1GbE
Power Over Ethernet (PoE)
UPOE
Dimensions (WxDxH)
16.5 cm x 11.2 cm x 6.2 cm
Weight
834 g
TAA Compliant
Yes
Manufacturer Warranty
3-year warranty
General
Device Type
Network/power extender
Form Factor
Wall mountable
Networking
Connectivity Technology
Wired
Cabling Type
10Base-T, 100Base-TX, 1000Base-T
Data Link Protocol
10Mb LAN, 100Mb LAN, 1GbE
Data Transfer Rate
2 Gbps
MAC Address Table Size
8K entries
Features
Full duplex mode, wall mountable, 1Mbit packet buffer, daisy-chaining support, 10 KB Jumbo Frame
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3bt (draft)
Expansion / Connectivity
Interfaces
2 x Ethernet 1000Base-T (UPOE output) - RJ-45 female ¦ 1 x Ethernet 1000Base-T (UPOE input) - RJ-45 female
Miscellaneous
Included Accessories
Wall mounting kit
Mounting Kit
Included
Compliant Standards
FCC, EN 60950-1, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP67
TAA Compliant
Yes
Power
Power Over Ethernet (PoE)
UPOE
Dimensions & Weight
Width
16.5 cm
Depth
11.2 cm
Height
6.2 cm
Weight
834 g
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
-40 °C
Max Operating Temperature
75 °C
Humidity Range Operating
95% (non-condensing)
