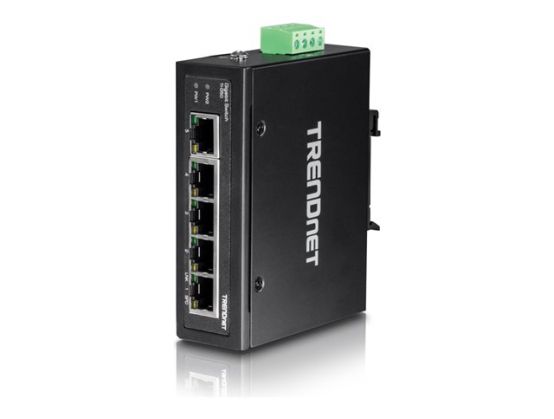

TRENDnet TI-G50 - switch - 5 ports - unmanaged - TAA Compliant
Checking delivery…
Product details
Switch
unmanaged
5 x 100/1000/10000
DIN rail mountable, wall-mountable
Payment options available at checkout
Main features
TRENDnet TI-G50
Switch
unmanaged
5 x 100/1000/10000
DIN rail mountable, wall-mountable
DC power
TAA Compliant
Overview
TRENDnet's TI-G50 is a reliable IP30 unmanaged DIN-rail switch with hardened components rated for extreme industrial environments. It offers 5 Gigabit ports and a 10 Gbps switching capacity. Redundant power inputs with overload current protection support zero downtime applications.
5 x Gigabit Ethernet ports
10 Gbps switching capacity
Hardened IP30 rated metal switch
Includes DIN-rail and wall mounts
Extreme -40 to 75 ºC operating temperature range
Dual redundant power inputs with overload current protection
Shock, freefall and vibration resistant
Grounding point protecting equipment from external electrical surges
Product Description
TRENDnet TI-G50 - switch - 5 ports - unmanaged - TAA Compliant
Device Type
Switch - 5 ports - unmanaged
Subtype
Gigabit Ethernet
Ports
5 x 100/1000/10000
Performance
Switching fabric bandwidth: 10 Gbps ¦ Forwarding performance (64-byte packet size): 7.44 Mpps
MAC Address Table Size
8K entries
Jumbo Frame Support
9KB
Features
Auto-negotiation, store and forward, half duplex mode, full duplex mode, 8KV ESD Protector, 6KV Surge protection
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Power
DC 12 - 56 V - power adapter not included
Power Redundancy
Yes
Dimensions (WxDxH)
11.3 cm x 8.2 cm x 3.1 cm
Weight
168 g
TAA Compliant
Yes
Manufacturer Warranty
Limited lifetime warranty
General
Device Type
Switch - 5 ports - unmanaged
Enclosure Type
DIN rail mountable, wall-mountable
Subtype
Gigabit Ethernet
Ports
5 x 100/1000/10000
Performance
Switching fabric bandwidth: 10 Gbps ¦ Forwarding performance (64-byte packet size): 7.44 Mpps
MAC Address Table Size
8K entries
Jumbo Frame Support
9KB
Features
Auto-negotiation, store and forward, half duplex mode, full duplex mode, 8KV ESD Protector, 6KV Surge protection
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
RAM
1024 KB
Expansion / Connectivity
Interfaces
5 x 1000Base-T RJ-45
Power
Power Device
External power adapter (not included)
Max Supported Qty
2
Power Redundancy
Yes
Voltage Required
DC 12 - 56 V
Power Consumption Operational
2.76 Watt
Miscellaneous
Included Accessories
DIN-rail mounting kit, wall mounting kit, removable terminal block
MTBF
510,304 hours
Compliant Standards
EN55022, EN55024, RoHS, WEEE, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, EN 55011, FCC Part 15 B Class A, IP30
TAA Compliant
Yes
Dimensions & Weight
Width
11.3 cm
Depth
8.2 cm
Height
3.1 cm
Weight
168 g
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
-40 °C
Max Operating Temperature
75 °C
Humidity Range Operating
0 - 95% (non-condensing)
