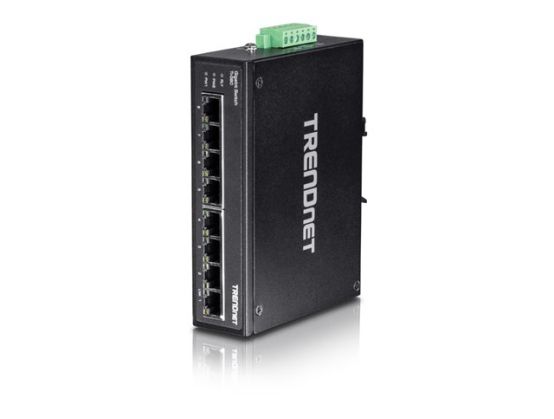

TRENDnet TI-G80 - switch - 8 ports - unmanaged - TAA Compliant
Checking delivery…
Product details
Switch
unmanaged
8 x 100/1000/10000
DIN rail mountable, wall-mountable
Payment options available at checkout
Main features
TRENDnet TI-G80
Switch
unmanaged
8 x 100/1000/10000
DIN rail mountable, wall-mountable
DC power
TAA Compliant
Overview
TRENDnet's TI-G80 is a reliable IP30 unmanaged DIN-rail switch with hardened components rated for extreme industrial environments. It offers 8 Gigabit ports and a 16 Gbps switching capacity. Redundant power inputs and a power failure alarm output trigger support zero downtime applications.
8 x Gigabit PoE+ Ethernet ports
16 Gbps switching capacity
Hardened IP30 rated metal switch
Includes DIN-rail and wall mounts
Extreme -40 to 75 ºC operating temperature range
Dual redundant power inputs with overload current protection
Alarm output triggered by power failure
Shock, freefall and vibration resistant
Grounding point protecting equipment from external electrical surges
Product Description
TRENDnet TI-G80 - switch - 8 ports - unmanaged - TAA Compliant
Device Type
Switch - 8 ports - unmanaged
Subtype
Gigabit Ethernet
Ports
8 x 100/1000/10000
Performance
Switching fabric bandwidth: 16 Gbps ¦ Forwarding performance (64-byte packet size): 11.9 Mpps
MAC Address Table Size
8K entries
Jumbo Frame Support
9KB
Features
Auto-negotiation, store and forward, half duplex mode, full duplex mode, 8KV ESD Protector, 6KV Surge protection
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Power
DC 12 - 56 V - power adapter not included
Power Redundancy
Yes
Dimensions (WxDxH)
14.3 cm x 3.6 cm x 10.4 cm
Weight
512 g
TAA Compliant
Yes
Manufacturer Warranty
Limited lifetime warranty
General
Device Type
Switch - 8 ports - unmanaged
Enclosure Type
DIN rail mountable, wall-mountable
Subtype
Gigabit Ethernet
Ports
8 x 100/1000/10000
Performance
Switching fabric bandwidth: 16 Gbps ¦ Forwarding performance (64-byte packet size): 11.9 Mpps
MAC Address Table Size
8K entries
Jumbo Frame Support
9KB
Features
Auto-negotiation, store and forward, half duplex mode, full duplex mode, 8KV ESD Protector, 6KV Surge protection
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
RAM
1024 KB
Expansion / Connectivity
Interfaces
8 x 1000Base-T RJ-45
Power
Power Device
External power adapter (not included)
Max Supported Qty
2
Power Redundancy
Yes
Voltage Required
DC 12 - 56 V
Power Consumption Operational
5 Watt
Miscellaneous
Included Accessories
DIN-rail mounting kit, wall mounting kit, removable terminal block
MTBF
510,304 hours
Compliant Standards
EN55022, EN55024, RoHS, WEEE, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, EN 55011, FCC Part 15 B Class A, IP30
TAA Compliant
Yes
Dimensions & Weight
Width
14.3 cm
Depth
3.6 cm
Height
10.4 cm
Weight
512 g
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
-40 °C
Max Operating Temperature
75 °C
Humidity Range Operating
0 - 95% (non-condensing)
