Overview

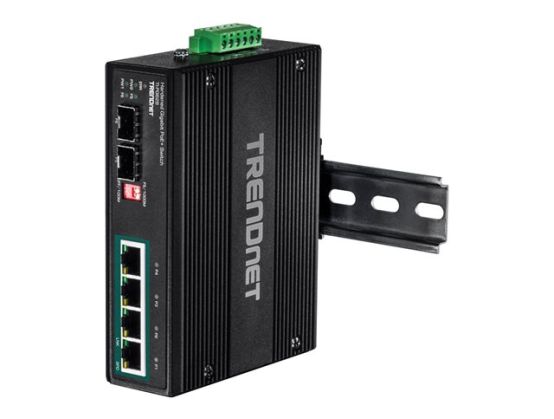

TRENDnet's 6-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG62B, is an industrial variable voltage switch with four gigabit PoE+ ports, a 120 W PoE power budget, and two dedicated SFP slots. Users are able to connect four PoE+ devices and two SFP modules to this industrial variable voltage PoE+ switch with a 12 Gbps switching capacity for high-speed connectivity to the network. The industrial variable voltage PoE+ switch is equipped with a rugged IP30 rated metal enclosure, and designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75°C (-40° - 167°F) for industrial environments. Dual 12 - 55 V DC power inputs on the industrial variable voltage switch provide redundancy with power failure alarm relay.
  • 4 x Gigabit PoE+ ports and 2 x dedicated SFP slots
  • IP30 rated metal enclosure with included DIN-rail and wall mount hardware
  • 12 Gbps switching capacity
  • Grounding point protects equipment from external electrical surges
  • Dual redundant power inputs with overload current protection
  • Alarm relay triggered by power failure of primary and/or redundant power
PoE power A 60 - 120 W PoE+ power budget supplies up to four Power over Ethernet devices. Fault tolerance Features dual redundant 12 - 56 VDC power inputs with output alarm relay. Industrial hardened design Equipped with a rugged IP30 rated housing designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate within a wide temperature range of -40 - 75° C.
