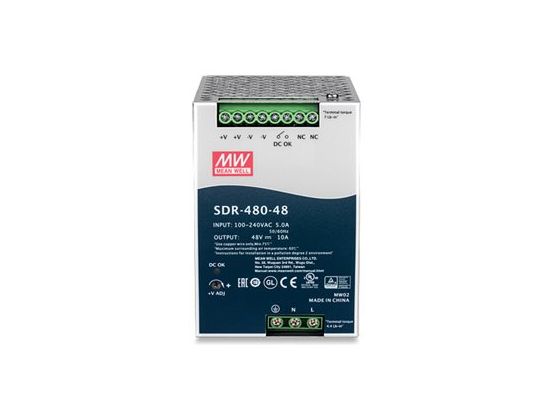

TRENDnet's AC to DC Industrial DIN-Rail Power Supply with PFC Function, model TI-S48048, supplies up to 480 W (48 V DC, 10 A) of power to industrial equipment such as PoE switches, network cameras, and Wi-Fi access points. This DIN-Rail power supply comes with active PFC, an integrated DIN-rail mount, and overload current protection.
Industrial power supply with integrated DIN-rail mount
Provides up to 480 W of power (48 V DC, 10 A)
High efficiency 94% and low power dissipation
150% peak load capability
Built-in active power factor controller (PF > 0.94)
Cooling by free air convection
Protections: short circuit, overload, over voltage, over temperature
UL 508 approved
Built-in DC OK relay contact
100% full load burn-in test
Industrial applicationsPower network devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.480 W powerProvides up to 480 W (48 V DC, 10 A) of power for PoE devices such as switches, network cameras, and access points.
Device TypePower supply - active Power Factor Correction (PFC) - DIN rail mountable
Weight1.6 kg
Input VoltageAC 115/230 V
Output VoltageDC 48 V
Power Capacity480 Watt
TAA CompliantYes
Dimensions (WxDxH)8.55 cm x 12.85 cm x 12.5 cm
Manufacturer Warranty3-year warranty
Extended Specification
General
Device TypePower supply - active Power Factor Correction (PFC) - DIN rail mountable
Power Device
Input VoltageAC 115/230 V
Input Voltage RangeAC 90 - 264 / DC 127 - 370 V
Frequency Required47 - 63 Hz
Output VoltageDC 48 V
Max Electric Current10 A
Power Capacity480 Watt
Efficiency94%
Power Factor (PF)0.94
Miscellaneous
MTBF1,129,000 hours
FeaturesLED indicators, over voltage protection, overload protection, short-circuit protection, overheat protection, fanless
Compliant StandardsUL 508, TUV, CB 60950-1, EN 60950-1, EN 55011, EN55022, CISPR 22, EN 61204-3 Class B, EN 61000-3-2, EN 61000-4-2, EN 61000-4-5, EN 61000-4-8, EN 61000-4-6, EN 61000-4-3, EN 61000-4-4, EN 61000-6-2, EN 61000-4-11, EN55024, SEMI F47, GL
