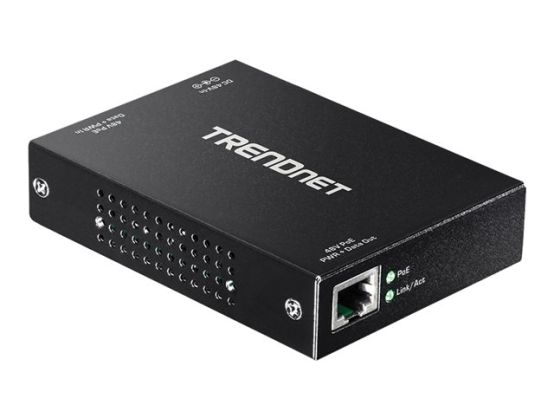

TRENDnet TPE-E100 - repeater - 10Mb LAN, 100Mb LAN, 1GbE
Checking delivery…
Product details
Repeater
1GbE
10Base-T, 100Base-TX, 1000Base-T
RJ-45 / RJ-45
Payment options available at checkout
Main features
TRENDnet TPE-E100
Repeater
1GbE
10Base-T, 100Base-TX, 1000Base-T
RJ-45 / RJ-45
up to 100 m
Overview
TRENDnet's Gigabit PoE+ extender, model TPE-E100, takes a single PoE+ connection and extends it an additional 100 m (328 feet) for remote PoE/PoE+ device installation. The PoE Extender auto-detects a PoE (15.4 W) or PoE+ (30 W) connection and extends it for a total distance of up to 200 m (656 feet) from the PoE+ power source equipment. The TPE-E100 features a convenient wall mountable design for installation flexibility. Daisy-chain up to 3 units for a total PoE+ network extension of 400 m (1312 feet).
Product Description
TRENDnet TPE-E100 - repeater - 10Mb LAN, 100Mb LAN, 1GbE
Device Type
Repeater - RJ-45 / RJ-45
Form Factor
External
Cabling Type
10Base-T, 100Base-TX, 1000Base-T
Data Transfer Rate
2 Gbps
Data Link Protocol
10Mb LAN, 100Mb LAN, 1GbE
Max Transfer Distance
100 m
Power Over Ethernet (PoE)
PoE+
Power
AC 120/230 V
Dimensions (WxDxH)
10 cm x 7.5 cm x 2.2 cm
Weight
228 g
Manufacturer Warranty
3-year warranty
General
Device Type
Repeater
Form Factor
External
Networking
Connectivity Technology
Wired
Cabling Type
10Base-T, 100Base-TX, 1000Base-T
Data Link Protocol
10Mb LAN, 100Mb LAN, 1GbE
Data Transfer Rate
2 Gbps
MAC Address Table Size
2K entries
Max Transfer Distance
100 m
Status Indicators
PoE, link/activity
Features
IGMP snooping, half duplex mode, full duplex mode, wall mountable, cascadable, rugged, 96KB packet buffer, metal housing
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
Expansion / Connectivity
Interfaces
1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE+ input) - RJ-45 female ¦ 1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE+ output) - RJ-45 female
Miscellaneous
Compliant Standards
FCC
Power
Power Over Ethernet (PoE)
PoE+
Power Device
External power adapter
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
36 Watt
Dimensions & Weight
Width
10 cm
Depth
7.5 cm
Height
2.2 cm
Weight
228 g
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
0 - 90% (non-condensing)
