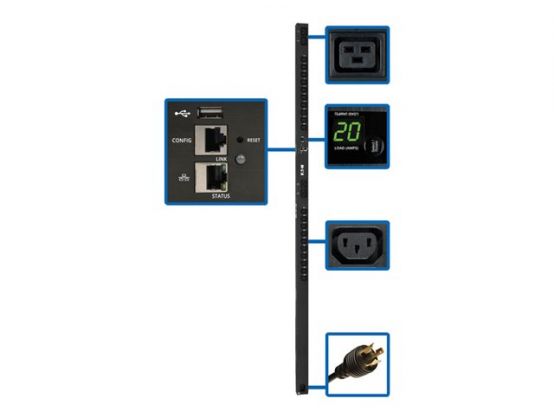

Eaton 3.7kW Single-Phase Switched PDU - LX Interface, 208/230V Outlets (20 C13 & 4 C19), C20/L6-20P, 0U, TAA - power distribution unit - 3.84 kW - TAA Compliant
Manufacture#: PDUMV20HVNETLX
Checking delivery…
Product details
LX Interface, 208/230V Outlets (20 C13 & 4 C19), C20/L6-20P, 0U, TAA
Power distribution unit (rack-mountable)
20 A
AC 200/208/220/230/240 V
Payment options available at checkout
Main features
Eaton 3.7kW Single-Phase Switched PDU
LX Interface, 208/230V Outlets (20 C13 & 4 C19), C20/L6-20P, 0U, TAA
Power distribution unit (rack-mountable)
20 A
AC 200/208/220/230/240 V
3.84 kW
1-phase
Ethernet 10/100
input: NEMA L6-20P
output connectors: 24 (power IEC 60320 C13, IEC 60320 C19)
0U
19"
3.05 m cord
TAA Compliant
Overview
3.7kW Single-Phase Switched PDU with LX Platform Interface, 208/230V Outlets (20 C13 & 4 C19), C20/L6-20P, 0U, TAA.
3.3/3.7kW 208/230V switched PDU
24 individually controllable outlets-20 C13, 4 C19
Pre-installed WEBCARDLX with latest version of PADM20 for IP-based Auto Probe feature
Digital ammeter for on-site load monitoring in real time
C20 inlet with 10ft NEMA L6-20P AC power cord
Product Description
Eaton 3.7kW Single-Phase Switched PDU - LX Interface, 208/230V Outlets (20 C13 & 4 C19), C20/L6-20P, 0U, TAA - power distribution unit - 3.84 kW - TAA Compliant
Device Type
Power distribution unit - rack-mountable
Cord Length
3.05 m
Rack Size
19" - 0U
Weight
3.86 kg
Input Wiring
1-phase
Input Voltage
AC 200/208/220/230/240 V
Output Voltage
AC 200/208/220/230/240 V
Power Capacity
3.84 kW
Input Connectors
1 x power NEMA L6-20P
Output connectors
20 x power IEC 60320 C13 12 A ¦ 4 x power IEC 60320 C19 16 A
Networking
Ethernet 10/100
Remote Management Protocol
SNMP 1, SNMP 2, Telnet, HTTP, HTTPS, SSH
Included Accessories
Cable retention brackets, 24 cable ties
TAA Compliant
Yes
Dimensions (WxDxH)
5.6 cm x 6.7 cm x 177.8 cm
Manufacturer Warranty
2-year warranty
General
Device Type
Power distribution unit - rack-mountable
Height (Rack Units)
0U
Rack Size
19"
Cord Length
3.05 m
Power Device
Input Voltage
AC 200/208/220/230/240 V
Frequency Provided
50/60 Hz
Input Wiring
1-phase
Input Connectors
1 x power NEMA L6-20P
Power Output Connectors Details
20 x power IEC 60320 C13 12 A ¦ 4 x power IEC 60320 C19 16 A
Output Voltage
AC 200/208/220/230/240 V 50/60 Hz
Max Electric Current
20 A
Power Capacity
3.84 kW
Networking
Remote Management Interface
Ethernet 10/100
Remote Management Protocol
SNMP 1, SNMP 2, Telnet, HTTP, HTTPS, SSH
Expansion / Connectivity
Interfaces
2 x management (Ethernet) - RJ-45 ¦ 1 x USB - 4 pin USB Type A
Miscellaneous
Included Accessories
Cable retention brackets, 24 cable ties
Cables Included
Power cable - external - 3.05 m ¦ Data cable
Rack Mounting Kit
Included
Features
LCD display, voltage monitoring, current meter, LED indicators, vertical orientation, email alerts support, firmware upgradable
Compliant Standards
FCC Class A certified, NOM, RoHS, CAN/CSA C22.2 No. 60950-1-07, IEC 60950-1:2005, EN 55024:2010, EN 55022:2010/AC:2011, IEC 60950-1:2007
TAA Compliant
Yes
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Humidity Range Operating
95% (non-condensing)
Dimensions & Weight
Width
5.6 cm
Depth
6.7 cm
Height
177.8 cm
Weight
3.86 kg
Dimensions & Weight (Shipping)
Shipping Width
16.26 cm
Shipping Depth
185.42 cm
Shipping Height
13.46 cm
Shipping Weight
6.44 kg
