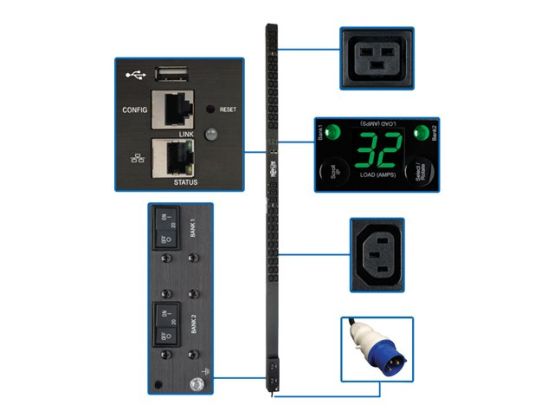

Tripp Lite 7.4kW Single-Phase Monitored PDU, LX Interface, 230V Outlets (36 C13/6 C19), IEC 309 32A Blue, 10 ft. Cord, 0U 1.8m/70 in. Height, TAA - power distribution unit - 7.7 kW - TAA Compliant
Manufacture#: PDUMNV32HV2LX
Checking delivery…
Product details
- Power distribution unit (rack-mountable)
- 32 A
- AC 200-240 V
- 7.7 kW
Payment options available at checkout
Main features
- Tripp Lite 7.4kW Single-Phase Monitored PDU, LX Interface, 230V Outlets (36 C13/6 C19), IEC 309 32A Blue, 10 ft. Cord, 0U 1.8m/70 in. Height, TAA
- Power distribution unit (rack-mountable)
- 32 A
- AC 200-240 V
- 7.7 kW
- 1-phase
- Ethernet 10/100, USB, serial
- input: IEC 60309 32A
- output connectors: 42 (IEC 60320 C13, IEC 60320 C19)
- 0U
- 3.05 m cord
- TAA Compliant
Overview
7.7kW Single-Phase Monitored PDU, LX Interface, 200-240V Outlets (36 C13/6 C19), IEC 309 32A Blue, 10 ft. (3.05 m) Cord, 0U 1.8m/70 in. Height, TAA.
- 7.7kW 200-240V single-phase monitored 0U PDU
- 42 outlets-36 C13, 6 C19-with plug-lock insert sleeves
- Pre-installed WEBCARDLX with latest version of PADM20 for enhanced remote management
- Digital ammeter for on-site load monitoring in real time
- IEC 309 32A Blue (2P+E) input with 10-ft. (3.05 m) AC power cord
Product Description
Tripp Lite 7.4kW Single-Phase Monitored PDU, LX Interface, 230V Outlets (36 C13/6 C19), IEC 309 32A Blue, 10 ft. Cord, 0U 1.8m/70 in. Height, TAA - power distribution unit - 7.7 kW - TAA Compliant
Device Type
Power distribution unit - rack-mountable
Cord Length
3.05 m
Rack Size
0U
Weight
4.4 kg
Input Wiring
1-phase
Input Voltage
AC 200-240 V
Output Voltage
AC 200-240 V
Power Capacity
7.7 kW
Input Connectors
1 x power IEC 60309 32A
Output connectors
36 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19
Networking
Ethernet 10/100, USB, serial
Remote Management Protocol
SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, SMTP
Included Accessories
42 plug-lock inserts
TAA Compliant
TAA Compliant
Dimensions (WxDxH)
5.6 cm x 6.7 cm x 177.8 cm
Manufacturer Warranty
2-year warranty
General
Device Type
Power distribution unit - rack-mountable
Height (Rack Units)
0U
Cord Length
3.05 m
Power Device
Input Voltage
AC 200-240 V
Frequency Provided
50/60 Hz
Input Wiring
1-phase
Input Connectors
1 x power IEC 60309 32A
Power Output Connectors Details
36 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19
Output Voltage
AC 200-240 V 50/60 Hz
Max Electric Current
32 A
Power Capacity
7.7 kW
Networking
Remote Management Interface
Ethernet 10/100, USB, serial
Remote Management Protocol
SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, SMTP
Expansion / Connectivity
Interfaces
1 x USB - 4 pin USB Type A ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x serial - RJ-45
Miscellaneous
Included Accessories
42 plug-lock inserts
Cables Included
Power cable - external - 3.05 m
Rack Mounting Kit
Included
Features
Vertical orientation, 2P+E plug, LCD display, current meter, amp meter, email alerts support, firmware upgradable
Compliant Standards
RoHS, EN 60950-1:2006, IEC 60950-1:2005 Second Edition
TAA Compliant
Yes
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Humidity Range Operating
5 - 95% (non-condensing)
Dimensions & Weight
Width
5.6 cm
Depth
6.7 cm
Height
177.8 cm
Weight
4.4 kg
Dimensions & Weight (Shipping)
Shipping Width
16.8 cm
Shipping Depth
13.7 cm
Shipping Height
186.2 cm
Shipping Weight
7 kg
