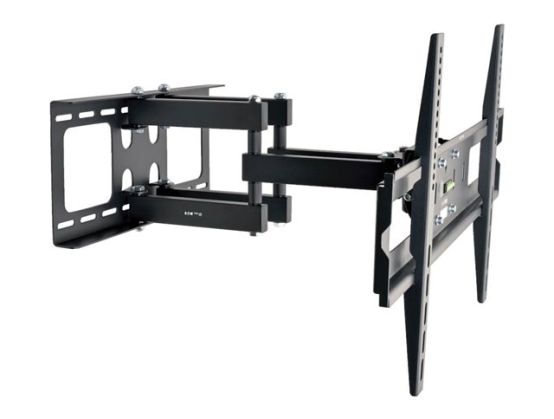

Eaton Tripp Lite Series Display TV Wall Monitor Mount Swivel/Tilt 37" to 70" TVs / EA / Flat-Screens
Bracket
for flat panel
steel
black
screen size: 37"-70"
wall-mountable
Overview
The VESA-compliant DWM3770X Swivel/Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 37 to 70 inches.
The articulating arm has six pivots that adjust independently for angle to give you maximum flexibility in positioning your display to fit your environment and comfort level. A 120° swivel, -15° to +15° tilt and -3° to +3° screen level adjustment capability minimizes glare and provides comfortable viewing from multiple angles.
Durable all-metal frame with scratch-resistant powder-coated finish supports up to 75 kgs (165 lbs.) Mounting hardware included. Built-in bubble level allows accurate display leveling. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm and 600 x 400 mm.
Fits most flat-panel displays from 37 to 70 in.
One-touch adjustment for comfortable viewing
120° swivel, -15° to +15° tilt and -3° to +3° screen adjustment
Product DescriptionEaton Tripp Lite Series Display TV Wall Monitor Mount Swivel/Tilt 37" to 70" TVs / EA / Flat-Screens bracket - for flat panel - black
Product TypeBracket - wall-mountable
Integrated DevicesWater level
Dimensions (WxDxH)60.1 cm x 52.4 cm x 44 cm
Tilt-15° to 15°
Levelling-3° to 3°
Swivel120°
AdjustmentsLevelling, tilt, swivel
Weight7.88 kg
Recommended UseFlat panel
Recommended Display Size37"-70"
VESA Mounting Interface200 x 200 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm, 300 x 300 mm
Max Load Weight74.8 kg
MaterialSteel
ColourBlack
Package Content4 x M5x14 screws, 4 x M6x14 screws, 4 x M6x30 screws, 4 x M8x20 screws, 4 x M8x30 screws, 4 x washers, 4 x D6 washers, 8 x spacers (small), 4 x spacers (big), 6 x concrete anchors, 2 x adapter brackets, mounting template, wall plate, 6 x anchor bolts
Manufacturer Warranty5-year warranty
Extended Specification
General
Width60.1 cm
Depth52.4 cm
Height44 cm
Weight7.88 kg
MaterialSteel
ColourBlack
Package Content4 x M5x14 screws, 4 x M6x14 screws, 4 x M6x30 screws, 4 x M8x20 screws, 4 x M8x30 screws, 4 x washers, 4 x D6 washers, 8 x spacers (small), 4 x spacers (big), 6 x concrete anchors, 2 x adapter brackets, mounting template, wall plate, 6 x anchor bolts
AV Furniture
TypeBracket
Recommended UseFlat panel
Placing / MountingWall-mountable
VESA Mounting Interface200 x 200 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm, 300 x 300 mm
