The two-meter N845-02M-8L-MG MTP/MPO to 8xLC Fan-Out Patch Cable supports 40 Gb Ethernet speeds and is designed for high-density connections between 40GBASE-SR4 network equipment. With one male MTP/MPO and eight male LC connectors, this OM4-rated multimode fiber optic fan-out cable supports various multi- and single-fiber connections. It fully transmits 40GBASE-SR with four fibers transmitting at 10 Gbps in each direction. Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections.
Push/pull tab connectors are easily accessible in high-density data center applications and make the cable easy to install and remove with one hand. The magenta-colored N845-02M-8L-MG features a premium-grade ceramic ferrule for 10 GbE and faster applications. The slim, space-saving uniboot design makes cable easier to manage. The plenum-rated jacket is perfect for connecting high-speed network components in ceilings, walls and ducts. The sturdy plastic housing is built to last a long time.
- OM4-Rated for 40 Gb Ethernet Applications
- Connects 4 10Gb duplex LC devices to a 40Gb MTP port on a network switch
- Designed for high-density connections between 40GBASE-SR4 network equipment
- Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections
- Multimode fiber optic fan-out cable supports various multi- and single-fiber connections
- Fully transmits 40GBASE-SR with four fibers transmitting at 10 Gbps in each direction
- Magenta-colored for identification as an OM4 cable
- MTP/MPO and LC Connectors with Push/Pull Tabs

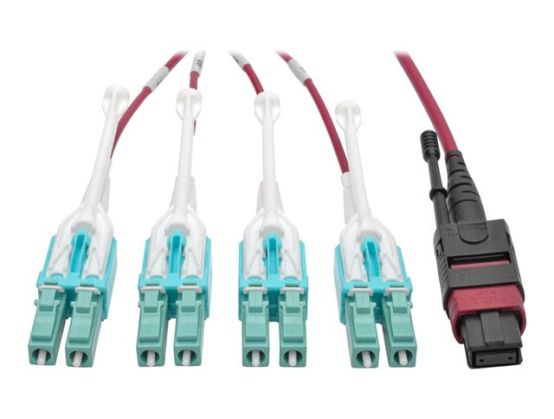

- 1 male MTP/MPO and 8 male LC connectors
- Push/pull tab connectors easy to install and remove with one hand
- Error-Free Signal Transfer
- Premium-grade ceramic ferrule for 10 GbE and faster applications
- Slim, space-saving uniboot design makes cable easier to manage
- Plenum-rated jacket for connecting in ceilings, walls and ducts
- Sturdy plastic housing built to last a long time
High-speed connectivity
This fiber optic cable is designed to support 40GBASE-SR4 technology, allowing for rapid data transmission suitable for data centers and network environments.
Plenum-rated design
The plenum-rated construction of this cable ensures compliance with safety standards for installations in air handling spaces, minimizing fire hazards.
Reliable push-pull connectors
The cable features a push-pull connector system that simplifies connections and disconnections, enhancing user experience in high-density applications.
Compliant with OM4 standards
Designed according to OM4 standards, this multimode cable provides higher performance and greater bandwidth over distances, meeting demanding networking needs.
Durable ceramic ferrule
The ceramic ferrule promotes precise fiber alignment, ensuring lower signal loss and contributing to the overall reliability of the network connection.
