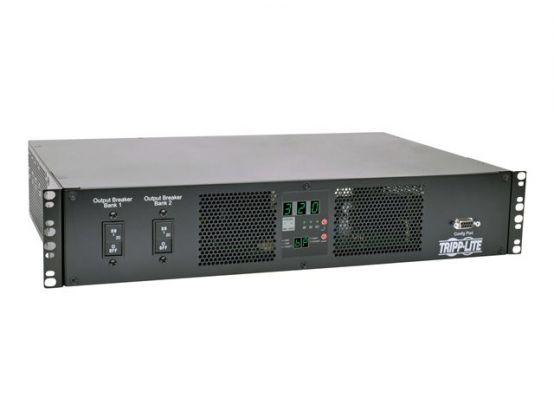

Tripp Lite PDU Metered 7.4kW 230V ATS 16 C13 2 C19 2 IEC309 Cords 32A 2URM - horizontal rackmount - power distribution unit - 7.4 kW - TAA Compliant
Manufacture#: PDUMH32HVAT
Checking delivery…
Product details
- Horizontal rackmount
- power distribution unit (rack-mountable)
- 32 A
- AC 200/208/220/230/240 V
Payment options available at checkout
Main features
- Tripp Lite PDU Metered 7.4kW 230V ATS 16 C13 2 C19 2 IEC309 Cords 32A 2URM
- Horizontal rackmount
- power distribution unit (rack-mountable)
- 32 A
- AC 200/208/220/230/240 V
- 7.4 kW
- 1-phase
- input: IEC 60309 32A
- output connectors: 18 (power IEC 60320 C13, IEC 60320 C19)
- 2U
- 19"
- TAA Compliant
Overview
7.7kW Single-Phase 200-240V Metered Automatic Transfer Switch PDU, 2 IEC309 32A Blue Inputs, 16 C13, 2 C19 Outlets, 2U, TAA.
- Single-phase IEC 309 32A Blue (2P+E) input and 200-240V output
- 16 C13 and 2 C19 outlets in 2 load banks
- Automatic transfer switching within 1-5 ms
- Mounts in 2U of space in EIA-standard 19 in. racks
- Multifunction digital display with LED indicators
Product Description
Tripp Lite PDU Metered 7.4kW 230V ATS 16 C13 2 C19 2 IEC309 Cords 32A 2URM - horizontal rackmount - power distribution unit - 7.4 kW - TAA Compliant
Device Type
Power distribution unit - rack-mountable
Rack Size
19" - 2U
Weight
6.21 kg
Input Wiring
1-phase
Input Voltage
AC 200/208/220/230/240 V
Output Voltage
AC 200/208/220/230/240 V
Power Capacity
7.4 kW
Input Connectors
2 x power IEC 60309 32A
Output connectors
16 x power IEC 60320 C13 - 230 V ¦ 2 x power IEC 60320 C19 - 230 V
Included Accessories
Cable ties, cable retention brackets
TAA Compliant
TAA Compliant
Dimensions (WxDxH)
44.5 cm x 31.8 cm x 8.89 cm
Manufacturer Warranty
2-year warranty
General
Device Type
Power distribution unit - rack-mountable
Height (Rack Units)
2U
Rack Size
19"
Power Device
Input Voltage
AC 200/208/220/230/240 V
Input Voltage Range
AC 200 - 240 V
Frequency Provided
50/60 Hz
Input Wiring
1-phase
Input Connectors
2 x power IEC 60309 32A
Power Output Connectors Details
16 x power IEC 60320 C13 - 230 V ¦ 2 x power IEC 60320 C19 - 230 V
Output Voltage
AC 200/208/220/230/240 V 50/60 Hz
Max Electric Current
32 A
Power Capacity
7.4 kW
Circuit Protection
Circuit breaker
Expansion / Connectivity
Interfaces
1 x management - 9 pin D-Sub (DB-9)
Miscellaneous
Included Accessories
Cable ties, cable retention brackets
Cables Included
Power cable - external - 3 m
Rack Mounting Kit
Included
Features
LCD display, voltage monitoring, current meter, LED indicators, Automatic Transfer Switch (ATS), power factor metre
Compliant Standards
NOM, RoHS, IEC 60950-1
TAA Compliant
Yes
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Humidity Range Operating
5 - 95% (non-condensing)
Dimensions & Weight
Width
44.5 cm
Depth
31.8 cm
Height
8.89 cm
Weight
6.21 kg
Dimensions & Weight (Shipping)
Shipping Width
42.4 cm
Shipping Depth
49 cm
Shipping Height
19.6 cm
Shipping Weight
9.21 kg
