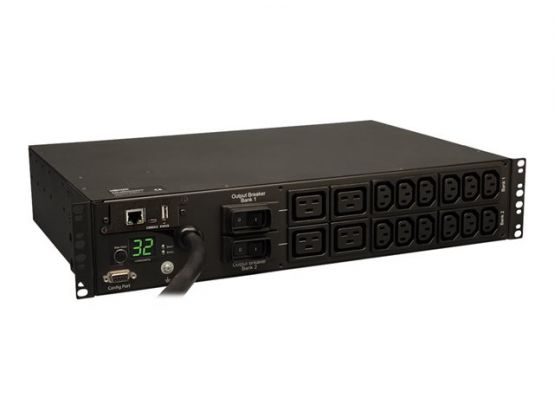

Tripp Lite 7.4kW Single-Phase Monitored PDU 230V Outlets (12-C13, 4-C19) IEC-309 32A Blue, 12 ft Cord 2U Rack-Mount, TAA - horizontal rackmount - power distribution unit - 7.4 kW
Checking delivery…
Product details
- Horizontal rackmount
- power distribution unit (rack-mountable)
- 32 A
- AC 230 V
Payment options available at checkout
Main features
- Tripp Lite 7.4kW Single-Phase Monitored PDU 230V Outlets (12-C13, 4-C19) IEC-309 32A Blue, 12 ft Cord 2U Rack-Mount, TAA
- Horizontal rackmount
- power distribution unit (rack-mountable)
- 32 A
- AC 230 V
- 7.4 kW
- Ethernet 10/100
- input: IEC 60309 32A
- output connectors: 16
- 2U
Overview
7.4kW Single-Phase Monitored PDU with LX Platform Interface, 230V Outlets (12-C13, 4-C19), IEC-309 32A Blue, 12 ft. (3.66 m) Cord, 2U Rack-Mount, TAA.
- Monitored 32A 230V PDU, 2U horizontal rackmount
- Pre-installed WEBCARDLX with latest version of PADM20 for enhanced remote management
- Visual current meter, Reversible housing
- Blue 230V IEC-309 32A (2P+E) input plug
- 16 outlets (12 C13, 4 C19) with included cord retention brackets
- Temperature, humidity and contact-closure monitoring options
- TAA Compliant
Product Description
Tripp Lite 7.4kW Single-Phase Monitored PDU 230V Outlets (12-C13, 4-C19) IEC-309 32A Blue, 12 ft Cord 2U Rack-Mount, TAA - horizontal rackmount - power distribution unit - 7.4 kW
Device Type
Power distribution unit - rack-mountable
Rack Size
2U
Weight
6.2 kg
Input Voltage
AC 230 V
Output Voltage
AC 230 V
Power Capacity
7.4 kW
Input Connectors
1 x power IEC 60309 32A
Output connectors
12 x power IEC 60320 C13 ¦ 4 x power IEC 60320 C19
Networking
Ethernet 10/100
Remote Management Protocol
SNMP 1, SNMP 2, Telnet, HTTP, HTTPS
Included Accessories
Cable retention brackets
Dimensions (WxDxH)
44.5 cm x 31.8 cm x 8.9 cm
Manufacturer Warranty
2-year warranty
General
Device Type
Power distribution unit - rack-mountable
Height (Rack Units)
2U
Power Device
Input Voltage
AC 230 V
Frequency Provided
50/60 Hz
Input Connectors
1 x power IEC 60309 32A
Power Output Connectors Details
12 x power IEC 60320 C13 ¦ 4 x power IEC 60320 C19
Output Voltage
AC 230 V 50/60 Hz
Max Electric Current
32 A
Power Capacity
7.4 kW
Circuit Protection
Circuit breaker
Networking
Remote Management Interface
Ethernet 10/100
Remote Management Protocol
SNMP 1, SNMP 2, Telnet, HTTP, HTTPS
Miscellaneous
Included Accessories
Cable retention brackets
Cables Included
Power cable - integrated - 3.7 m
Rack Mounting Kit
Included
Features
2 LED lights, LED display, current meter, email alerts support
Compliant Standards
RoHS, UL 60950-1
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Humidity Range Operating
0 - 95% (non-condensing)
Dimensions & Weight
Width
44.5 cm
Depth
31.8 cm
Height
8.9 cm
Weight
6.2 kg
Dimensions & Weight (Shipping)
Shipping Width
113 cm
Shipping Depth
80.6 cm
Shipping Height
20.3 cm
Shipping Weight
7.6 kg
